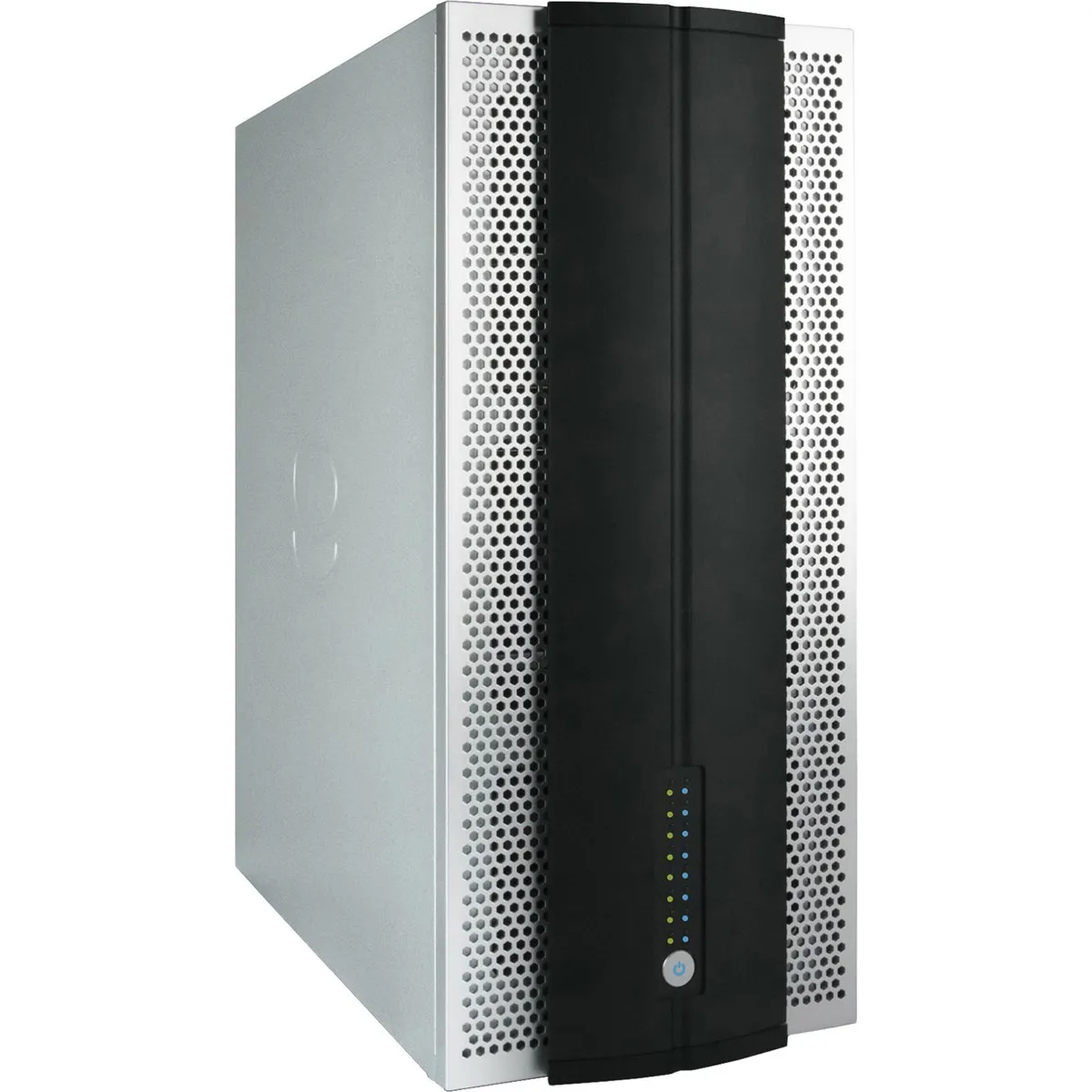

Accusys ExaSAN A12S3-PS 12-Bay PCIe 3.0 Tower RAID System with Single Power Supply, No HDD

Add to Wishlist

Key Features

  • Maximize your data storage with this 12-bay Accusys RAID system, supporting both SAS/SATA drives.
  • Experience fast performance with up to 2500 MB/s data transfer for demanding applications.
  • Ensure data security with RAID levels 0, 1, 5, 6, 0+1, and JBOD, protecting your valuable files.
  • Manage your storage easily with the Java-based RADIGuard X GUI for quick troubleshooting.
  • Expand your storage as needed with JBOD expansion, supporting up to three additional units.
  • Enjoy remote access and monitoring with email event notifications for real-time system status.

AED27,099.00

Add to Wishlist

About Accusys ExaSAN A12S3-PS

When it comes to robust and efficient data storage solutions, the ExaSAN A12S3-PS 12-Bay PCIe 3.0 Tower RAID System with Single Power Supply, No HDD stands out as a high-performance, reliable choice. This compact, user-friendly system is designed to support 12 units of SAS/SATA/SSD HDD, making it a versatile solution for a variety of data storage needs.

With read speeds of over 2500MB/s and write speeds of 2000 MB/s, the ExaSAN A12S3-PS is not only powerful but also capable of handling the rigorous demands of 4K editing software and large-scale storage tasks. This makes it an ideal choice for small to medium-sized businesses and enterprises that require efficient, high-capacity storage solutions.

Built on the advanced PCIe 3.0 technology, this RAID system offers impressive speed and capacity. This is one of the reasons why production companies choose ExaSAN over traditional DAS and SAN solutions, which can often be more expensive and complex.

For users seeking extreme speed, the ExaSAN A12S3-PS offers the Z2D HBA card, which stripes two RAID systems to double the speed. With this 12-bay PCIe 3.0 RAID system, the total throughput achieved can be up to 4000 MB/s. Even a single ExaSAN A12S3-PS can reach speeds of 2500 MB/s and process multiple video streams simultaneously.

In summary, the ExaSAN A12S3-PS 12-Bay PCIe 3.0 Tower RAID System with Single Power Supply, No HDD is a durable, high-performance storage solution that offers reliability, versatility, and user-friendly operation.

Accusys ExaSAN A12S3-PS Features

  • 12 Bay, maximum 3 JBOD
  • Compatible with C1M, PCIe to Thunderbolt converter
  • Supports RAID Level 0, 1, 5, 6, 10, JBOD
  • PCIe 3.0 32 Gb bandwidth
  • Compatible with 3.5″ and 2.5″ SATA/SAS/SSD enterprise hard disks
  • PCIe SAN ready
  • Single power supply
SKU: A12S3-PS Category: Tag:

Accusys ExaSAN A12S3-PS Specifications

  • System Type

    12-bay Tower RAID system

  • Host Interface

    PCIe 3.0

  • Data Transfer Rate

    32 Gb/s

  • Disk Interface

    12x SAS / SATA

  • Disk Type

    3.5″ / 2.5″ / SSD

  • RAID Level

    0, 1, 5, 6, 0+1, JBOD

  • Controller CPU

    LSI SAS3108 Processor

  • Cache Memory

    2G DDRlll 1866 with ECC-protected

  • JBOD Expansion

    3x JBOD

  • Performance

    Up to approximately 2500 MB/s

  • Max. Capacity

    96TB (based on 8TB capacity) (Not Included)

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 70 deg. C (-4 to 158 deg. F)

  • Operating Humidity

    5% – 85%, Non-condensing

  • RAID Controller Functions

    Online RAID Set Expansion and RAID LEVEL Migration
    Online bad block data recovery and reallocation
    Online disk scrubbing with data refresh and parity
    Disk health monitoring by S.M.A.R.T
    Array Roaming and Drive Traveling
    Mirror Snapshot for fast backup and restore
    Disk Lag Proof Technology to guarantee disk timely response
    Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation

  • Management

    Java-based RADIGuard X GUI
    Event log saving in text file for quick trobleshooting
    Event notification by email (SMTP)
    LED indicator for RAID & disk drives status in front
    400W (Single). 110V – 240V power supply
    Two 12cm x 12 cm Fan with Smart Fan Control feature

  • Supported OS

    Windows: XP/2003/2008/2012 and Windows 7, 8.1 (32/64bit), 10 (30/64bit)
    Linux: RHEL, SUSE, CentOS…etc
    MAC: OS X (10.6, 10.7, 10.8, 10.9, 10.10, 10.11)

  • Dimensions (LxWxH)

    369 x 175 x 394.6mm (14.53 x 6.89 x 15.54″)

  • Weight

    13.64kg (30.07 lbs)
