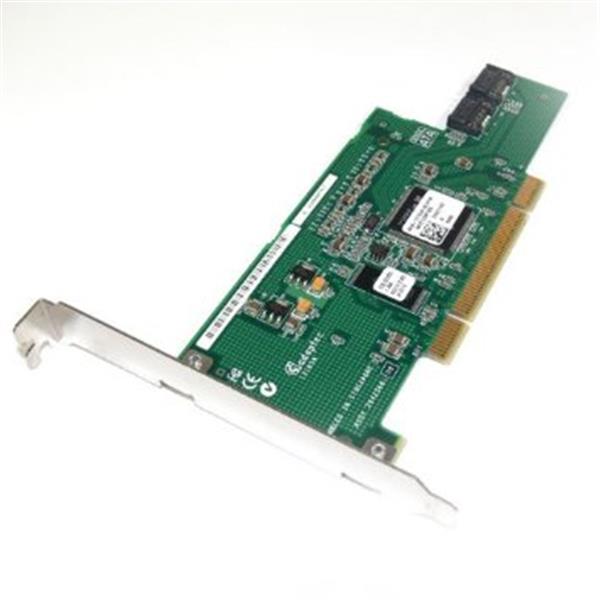

Adaptec 1210SA SATA Serial ATA 2 Port RAID Controller PCI

Benefits
   Low-cost Serial ATA RAID controller for data protection and increased performance.

Key Differentiators

-48-bit LBA supports drive sizes larger than 137GB
-Supports bootable arrays
-Adaptec Storage Manager simplifies array creation and management through pop-up tips and online help.

Customer Needs –    Ideal for desktop and workstations as well as sub-entry servers requiring RAID mirroring or striping

System Environment –   Desktop

Capacity – Max. physical disk drive size: 1TB
RAID Levels
0, 1, JBOD

Key RAID Features – Background initialization / Support bootable arrays

Number of devices –  Up to 2 Serial ATA drives

Bus System Interface Type – 32-bit/66MHz PCI

Internal Connectors – Two Serial ATA ports

Data Transfer Rate –  Up to 1.5 Gbits/sec per port

System Requirements
Pentium or equivalent PC with available 3.3V or 5V PCI slot
32-bit PCI bus 2.2 compliant, CD-ROM drive
Floppy disk drive

Device Support

Up to two Serial ATA disk drives
48-bit LBA supports drive sizes larger than 137 GByte

Board dimensions

Low-profile card: 2.5 inch H x 6.6 inch L
6.4 cm H x 16.8 cm L

Operating temperature –    0° to 55° C

Power consumption –    0.3 amps@+5V
