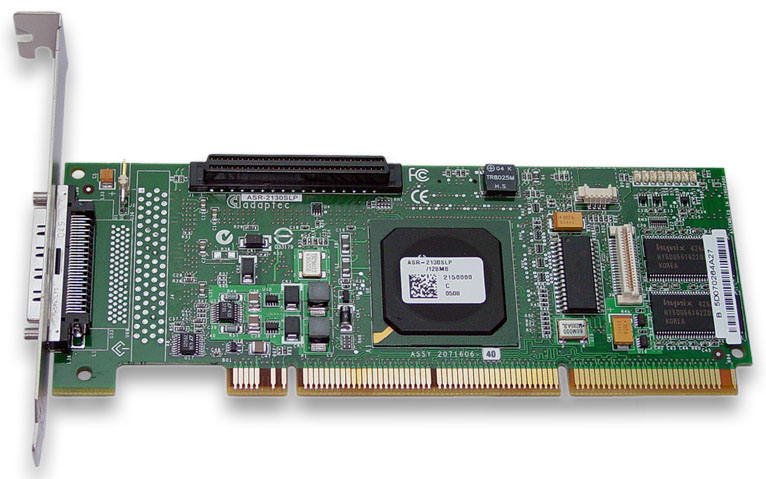

Adaptec 2130SLP U320 LVD SCSI RAID Controller – Brand New
As more high-density servers come online, businesses are increasingly requiring advanced RAID functionality in a small form factor. This is exactly the need addressed by the new Adaptec 2130SLP card. This controller provides a number of advanced features for entry-level and mid-range servers, such as full capacity utilization of mixed size drives.
Ultra320 SCSI: Faster and smarter
The Adaptec 2130SLP RAID controller features Ultra320 SCSI and data transfer rates up to 320 MByte/sec. Adaptec developed a new technology called Seamless Streaming⢠to optimize Ultra320 performance, maximizing bus utilization and minimizing command overhead as multiple commands are transferred in a single connection and at higher speeds.
The Adaptec 2130SLP card features the Adaptec RAID Code (ARC) with standard RAID 0, 1, 5, 10, 50, JBOD as well as Adaptec Advanced Data Protection Suite with RAID 1E, 5EE, 6, 60, Copyback Hot Spare and optional Snapshot Backup.
The Adaptec Advanced Data Protection Suite includes advanced RAID levels and features:
- Hot Space (RAID 5EE)
- Striped Mirror (RAID 1E)
- Dual Drive Failure Protection (RAID 6, 60)
- Copyback Hot Spare
Highlights
- One-channel Adaptec 2130SLP Ultra320 PCI-X SCSI RAID controller featuring Adaptecās Seamless Streaming technology
- High-performance, Integrated RAID On Chip (ROC) ASIC
- Standard Features: RAID 0, 1, 10, 5, 50, JBOD, hotswap, hot spares, Online Capacity Expansion, RAID Level Migration, Optimized Disk Utilization and the following Adaptec Advanced Data Protection Suite features: RAID 1E, 5EE, 6, 60 and Copyback Hot Spare
- Optional Feature: Snapshot Backup
- Exclusive Adaptec Optimized Disks Utilization allows use of the full disk capacity
- Remote storage management through Adaptec Storage Manager software
- Low-profile MD2 form factor for high-density servers, PCI-X
- Optional lithium ION battery
- Intel EM64-T and AMD-64 ready
- RoHS compliant
