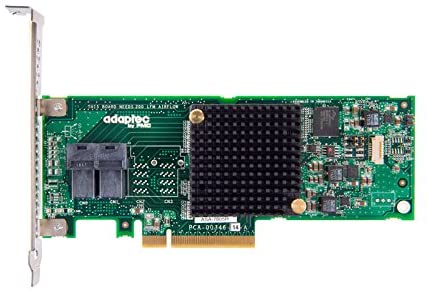

Adaptec 2280800-R PCIe SAS SATA Host Bus Adapter

Adaptec 2280800-R 8 Port PCIe SAS/SATA 6Gbps HBA – Brand New

Adaptec 2280800-R 8 Port PCI Express, SAS Serial ATA 6.0 Gbps Host Bus Adapter – Brand New

Alt MPN: ASA-7805H

The Series 7H family of Adaptec by PMC SAS/SATA host bus adapters (HBA) offers the ideal high performance solution for data centers requiring maximum I/O connectivity and low latency.

Flexible, Scalable, Customizable

Utilizing PMC’s 16x6G SAS protocol controller, Series 7H HBAs support both Serial Attached SCSI (SAS) and Serial ATA (SATA) interfaces to provide the flexibility to use cost effective, high-capacity SATA drives and/or high-performance SAS drives.

The Series 7H HBAs feature a low-profile MD2 form factor and mini SAS HD connectors that facilitate easy installation and cable connections in dense server environments.

Series 7H HBAs can directly connect up to 16 high-performance SSD/HDD devices without expanders to offer the highest performance and lowest latency I/O connection.

Up to 16 SAS/SATA ports allow for maximum I/O throughput, and the OS drivers use MSI-X to leverage all available host CPU cores to achieve maximum performance and utilize full PCI Gen3 bandwidth.

New mini SAS HD Connectors and SAS HD Cables

These connectors allow for greater flexibility in configuration options by supporting up to 16 native SAS/SATA ports in a Low-profile MD2 form factor. The new connectors can be combined with a wide range of Adaptec SAS HD cables, including straight connectors or Adaptec’s first to market right angle connectors.

Compatibility, Reliability, and Support

Series 7H HBAs have been extensively tested with third-party systems and devices to deliver the utmost in compatibility. These HBAs are equipped with both uEFI and legacy BIOS options as well as a CTRL-A configuration utility and HII-based BIOS tools.

• Designed to deliver maximum performance and low latency
• 6 Gb/s throughput at each port
• PCIe Gen3 x8 host interface
• Low Profile MD2
• Up to 800,000 IOPS @ 4KB block size and up to 1 million IOPS @512 Byte block size
• Up to 6600 MB/s sequential throughput (sustained)
• Supports SAS and SATA HDDs, SSDs and SAS tape drives
• New mini SAS HD connectors and SAS HD cables— for fit and function in dense server configurations
• Support for SAS expanders supporting up to 256 devices
• Enclosure management support via LED header and SES2 / SGPIO
• Intel EPSD THOL Certified
• PCIe® 3.0 Products now PCI-SIG® Compliant: ASA-71605H and ASA-70165H
