Adaptec 29320A-R SCSI RAID Controller

Add to Wishlist

1,299.00 د.إ

Add to Wishlist

Adaptec 29320A-R / 2253500-R U320 64-bit 133 MHz Half Height PCI-X Single Channel LVD SCSI Controller with RAID 0,1,10 support – Brand New

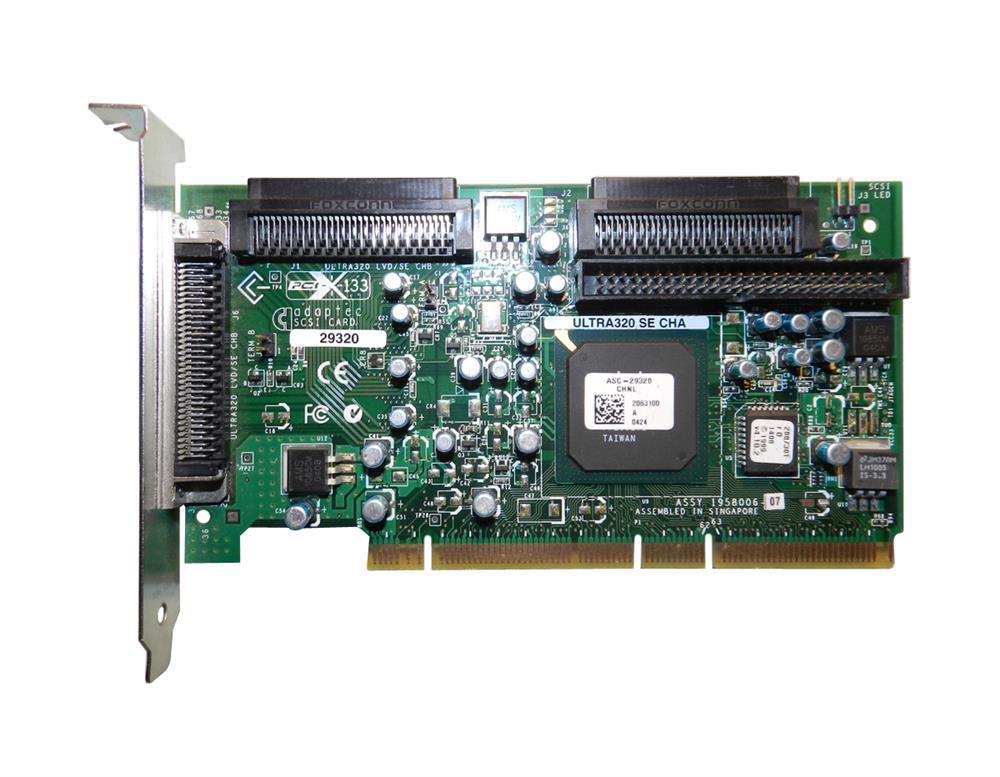

The Adaptec SCSI Card 29320A-R is a half-size, 64-bit 133 MHz PCI-X, single-channel Ultra320 SCSI card with integrated HostRAIDĀ®. The Adaptec 29320A-R offers additional drivers for HostRAID as well as a new management tool. It provides worry-free data protection at the fastest SCSI speeds available up to 320 MByte/sec. The card has a 68-pin HD external connector and a 68-pin HD internal connector for Ultra320 SCSI (LVD) hard disks drives and a 68-pin/50-pin legacy SCSI connector.

SKU: 29320A-R Category: Tag:
Weight 0.907 kg

Supported Operating Systems

    • Microsoft Windows
    • Red Hat Linux
    • SUSE Linux
    • Novell NetWare
    • Sun Solaris
    • SCO Unix

Benifits

    • Single-channel Ultra320 SCSI card with legacy
    • SCSI connectors and HostRAID RAID 0, 1 and 10 for data protection

Customer Needs

    • Ideal for entry-level servers and workstations requiring connector flexibility and legacy SCSI support

System Environment

    • Server

Number of Devices

    • 15

Bus System Interface Type

    • 64-bit, 133 MHz PCI-X

External Connectors

    • One 68-pin HD

Internal Connectors

    • One 68-pin Ultra320
    • One 68-pin wide Ultra
    • One 50-pin narrow Ultra

Data Transfer Rate

    • 320 MB/sec/channel

System Requirements

    • Intel PC or equivalent with available PCI slot (2.2 compliant)

RAID Level

    • RAID 0,1,10

Physical Dimensions

    • 6.87 inches x 3.87 inches

Power Requirements

    • .520 amps @ +5V, .600 amps @ +3.3V

Mean Time Before Failure (MTBF)

  • 1,181,032 hours at 40 degrees C
