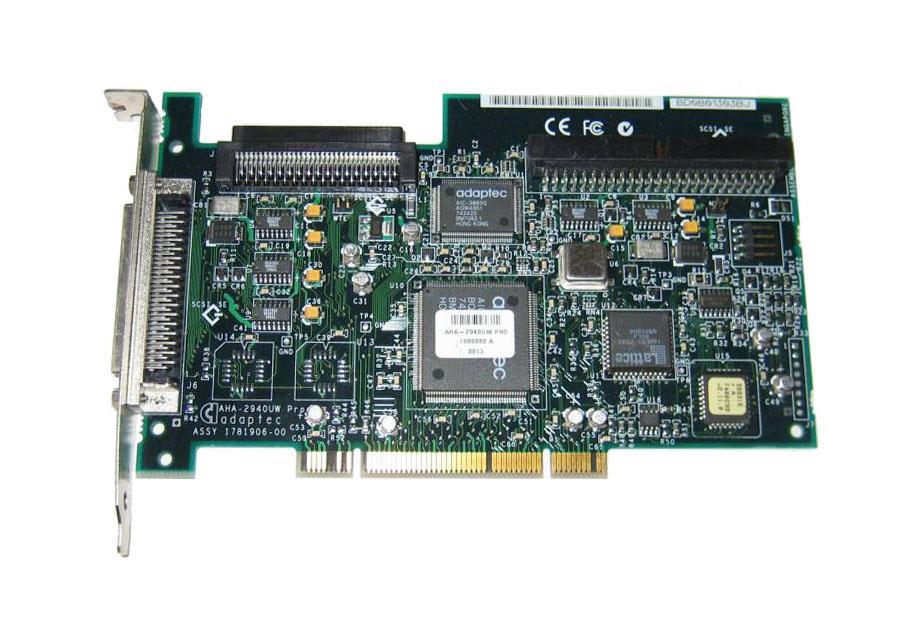

Adaptec 2940UW Ultra Wide LVD SCSI Controller


399.00 د.إ

Adaptec 2940UW Ultra Wide LVD SCSI Controller – Used Pull Adaptec 2940UW Ultra Wide LVD SCSIĀ  Controller – Used Pull
Weight 0.226 kg
Data Transfer Rate
40 MByte/sec
Device Support
Up to 15 devices total
External Connector(s)
68-pin High-Density
System Bus interface
PCI local bus
Package Contents
AHA-2940 UW PCI-to-Wide UltraSCSI host adapter board

General Specifications

Supported Protocols
SCSI-1
SCSI-2
SCSI-3
WIDE UltraSCSI
Advanced SCSI Features
multi-threaded I/O,
scatter/gather,
tagged queuing,
disconnect/reconnect,
synchronous and asynchronous data transfer
Electrical Drivers
Single-ended, active, programmable via SCSISelect configuration utility

Electrical and Mechanical Specifications

Board Dimensions
6.87″ x 3.87″ (17.0 cm x 9.5 cm)
Operating Characteristics
32 F to 131 F (0 C to 55 C) 10% to 90% Relative Humidity, non condensing
Storage Characteristics
-67 F to 185 F (-55 C to 85 C)
MTBF (mean time between failures, Bellcore)
494,641 hours
Supported Operating Systems
Supported Operating Systems
IBM OS/2 2.x
IBM OS/2 Warp Client 3.0
IBM OS/2 Warp Client 4.0
IBM OS/2 Warp Server 3.0
IBM OS/2 Warp Server 4.0
Microsoft MS-DOS 3.x
Microsoft MS-DOS 4.x
Microsoft MS-DOS 5.x
Microsoft MS-DOS 6.x
Microsoft Windows 2000 Professional
Microsoft Windows 3.10
Microsoft Windows 95
Microsoft Windows 95a
Microsoft Windows 95b
Microsoft Windows 95c
Microsoft Windows 98
Microsoft Windows 98 Second Edition
Microsoft Windows for Workgroups 3.11
Microsoft Windows Millennium Edition
Microsoft Windows NT 3.51
Microsoft Windows NT 4.0
Novell NetWare 3.10
Novell NetWare 3.11
Novell NetWare 3.12
Novell NetWare 3.2
Novell NetWare 4.0
Novell NetWare 4.01
Novell NetWare 4.10
Novell NetWare 4.11
Novell NetWare 4.12
Novell NetWare 4.20
Novell NetWare 5.0
Novell NetWare 5.10
SCO Openserver 5.0
SCO Openserver 5.01
SCO Openserver 5.02
SCO Openserver 5.03
SCO Openserver 5.04
SCO Openserver 5.05
SCO Unix 3.2.4.2
SCO UnixWare 2.0
SCO UnixWare 2.10
SCO UnixWare 2.11
