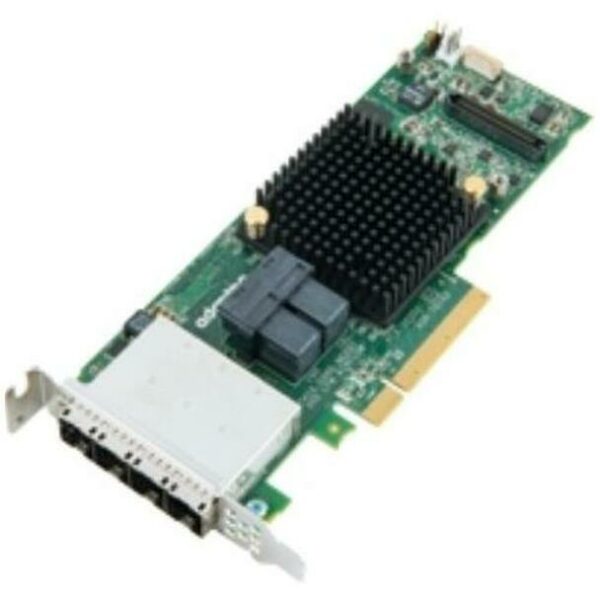

Adaptec 2280900-R Series 7 / 78165 24 Port Low Profile 6Gbps SAS / SATA PCIe Gen3 RAID Adapter – Brand New OEM
Adaptec 2280900-R Series 7 / 78165 24 Port Low Profile 6Gbps SAS / SATA PCIe Gen3 RAID Adapter – Brand New OEM
Alt MPNs: 0KT1V, 00KT1V
Adaptec 78165 SAS/SATA RAID Adapter
High Port Count, Low Profile 6Gb/s PCIe Gen3 Solution
The industry’s first 24-port, low profile RAID adapter
As the newest addition to the Adaptec 6Gb/s Series 7 RAID adapter family, the Adaptec 78165 is the first RAID adapter in the market to offer 24 native SAS/SATA ports (8 internal and 16 external) in a low profile/MD2 form factor.
The Series 7 RAID adapter family features PMC’s 24 port PM8015 RAID-on-Chip (ROC), which combines an x8 PCIe Gen3 interface with 6Gb/s SAS/SATA ports to enable a new generation of high performance RAID adapters unmatched by any other ROC in the industry.
While the PCIe Gen3 interface doubles bandwidth to the host compared to PCIe Gen2, it requires at least 16 6Gb/s SAS/SATA ports to double the bandwidth to the storage devices. Competing 6Gb/s solutions have only 8 ports, and cannot leverage that advantage.
Product Hightlights
- 6Gb/s throughput at each port
- 24 native SAS ports (8 internal and 16 external)
- Low profile/MD2 form factor
- Direct connect to backplanes (No expander needed)
- Mini SAS HD connectors and SAS HD cables — for fit and function in dense server configurations
- PMC PM8015 ROC
- Support for up to 256 SAS and SATA devices
- Support for SSD, HDD, Autoloader, Tape
- Auto configuration of HBA and Simple Volume modes — “set it and forget it”
- Adaptec Flash Module (AFM-700) for Zero Maintenance Cache Protection with 2GB NAND flash
| Specifications | |
|---|---|
| Part Number | 2280900-R |
| RAID Levels | 0, 1, 1E, 5, 6, 10, 50, 60 |
| Form Factor | MD2 – Low Profile 2.535”H x 6.6”L (64mm x 167mm) |
| Ports | 8 Internal 16 External |
| Connectors | 2 X SFF-8643 4 X SFF-8644 |
| Bus Interface | 8-Lane PCIe Gen3 |
| Processor | PMC PM8015 |
| Cache | 1024MB |
| Benefits | Ideal for space-limited entry-level server to high-end server platforms and high-performance workstations without compromising robust 6Gb/s performance and proven Adaptec reliability. |
| Key Differentiators |
|
| Operating Systems |
|
| Operating Temperature | 0°C to 55°C* (with 200 LFM airflow; without flash) 0°C to 50°C* (with 200 LFM airflow; with flash) |
| Operating Current | [email protected] VDC and [email protected] measured on PCIe Gen3 systems with 6G drives (max 21.93W) |
| Regulatory Certification | CE, FCC, UL, C-tick, VCCI, KCC, CNS |
| Environmental Compliance | RoHS |
| MTBF | 700,000 hours at 40°C (ongoing testing) |
