Adaptec AAA-131U2 Ultra2 SCSI RAID Controller

Add to Wishlist

499.00 د.إ

Add to Wishlist

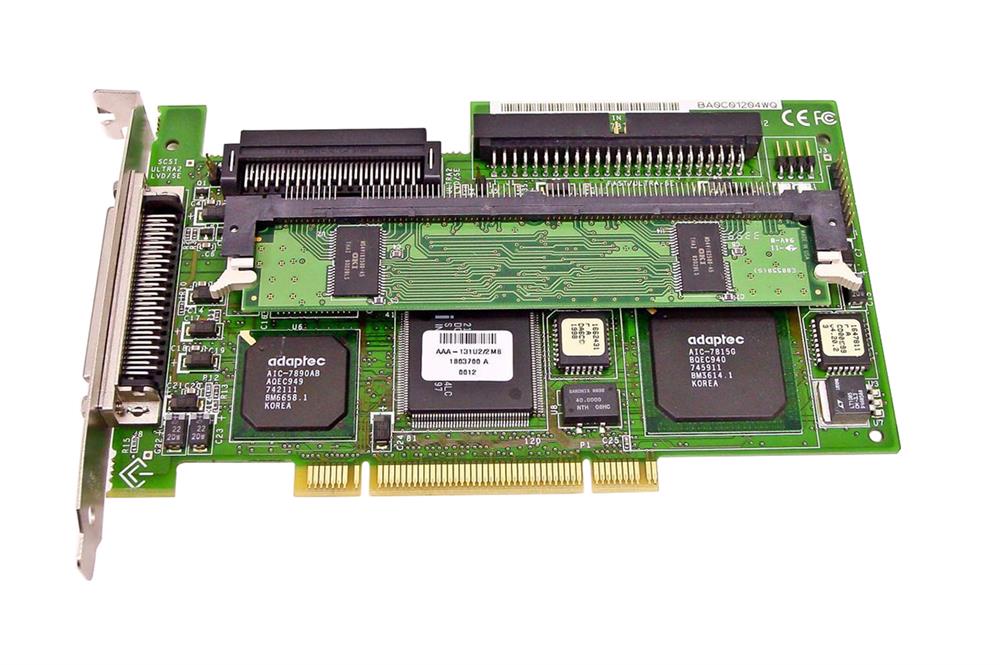

Adaptec AAA-131U2 2MBĀ Ultra2 SCSI RAID Controller – Used Pull

Adaptec’s Ultra2 SCSI RAID Card AAA-131U2 provides hardware RAID fault tolerance for entry-level SCSI servers and workstations. It has a 2MB cache module, upgradable to 64MB. It provides an internal 68-pin, LVD connector, an internal 50-pin connector, and an external 68-pin, LVD connector on a single SCSI channel. Up to 80 MByte per second total throughput is possible with up to 15 SCSI devices attached. This 32-bit PCI card supports RAID levels 0, 1, 0/1, 5 with hardware RAID features including bootable arrays, hot-swap and hot-spare.

SKU: AAA-131U2 Category: Tag:
Weight 0.907 kg
Customer Needs
Ideal for users who require maximum system availability, performance, and scalability
System Environment
Entry-level SCSI servers and workstations
Cache Memory
2 MByte (upgradable to 64 MB)
Bus System Interface Type
32-bit PCI
External Connectors
One 68-pin, LVD
Internal Connectors
One 68-pin, LVDOne 50-pin
System Requirements
Intel PC or equivalent with available PCI slot
Description

Single-channel Ultra2 SCSI RAID card with expandable cache memory

Data transfer Rate

Up to 80 MByte/sec

RAID Levels

RAID 0, 1, 0/1, 5

Board Dimensions

Half-size PCI card
(6.93 x 4.2 inches, 17.526 x 10.668 cm)

Power Consumption

5V: 4 A max.

Operating Characteristics

32 F to 131 F (0Ā°C to 55Ā°C)
