Adder AdderLink X-DVI PRO DL KVM Extender

Add to Wishlist
Key Features
  • DVI-D, Audio, 4 x USB 2.0 Type-A Ports
  • DVI-D Signal with Stereo Audio
  • Extends System Access up to 164′ Away
  • Uses CAT 5e/6a/7 Cables
  • Supports Resolutions up to 2560 x 1600
  • DVI-D, USB, and Audio Cables Included

د.إ5,699.00

Add to Wishlist

The AdderLink X-DVI PRO DL KVM Extender from Adder extends video, audio, and control signals up to 164′ away from a DVI-D equipped system, letting the system operate in a secure and temperature-controlled environment.

Adder ADDERLink Overview

The AdderLink X-DVI PRO DL KVM Extender from Adder extends video, audio, and control signals up to 164′ away from a DVI-D equipped system, letting the system operate in a secure and temperature-controlled environment. The X-DVI PRO DL includes transmitter and receiver modules that are joined using an optional CAT 5e, 6a, or 7 cable to transmit 2560 x 1600 visuals, stereo sounds, and full-speed USB 2.0 data. The transmitter module features a DVI-D input, USB 2.0 Type-B port, and 3.5mm audio-in jack for the computer system, while the receiver modules provide one dual-link DVI-D port, one 3.5mm audio jack, and four USB 2.0 ports for your set of peripherals such as a monitor, keyboard, mouse, external storage drive, and pair of speakers. In addition, full-speed (12 Mb/s) isochronous devices are also supported.

The X-DVI PRO DL allows you to remote your monitor with resolutions up to 2560 x 1600 @ 60 Hz up to 164′ (50m) away from your computer
Using a visually lossless technique, no visible artifacts and latency are introduced
Video, USB 2.0 (low and full speed), and audio pass along a single CAT 5e, 6a, or 7 cable
Four USB 2.0 ports enable connection of mice, keyboards, graphics tablets, jog shuttles, joysticks, 3D explorers, and mass storage devices
The X-DVI PRO DL extender consumes less than 6W per point
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer
With no need for drivers or software to be installed, the AdderLink X-DVI PRO DL extender is delivered in a zero-config state so you can plug the units in and start working with them straight away
Stereo CD-quality sound (stereo channel 16-bit sampled at 44.1 kHz) is available to transfer audio from local to remote for line out
Category:

Adder ADDERLink Specs

General

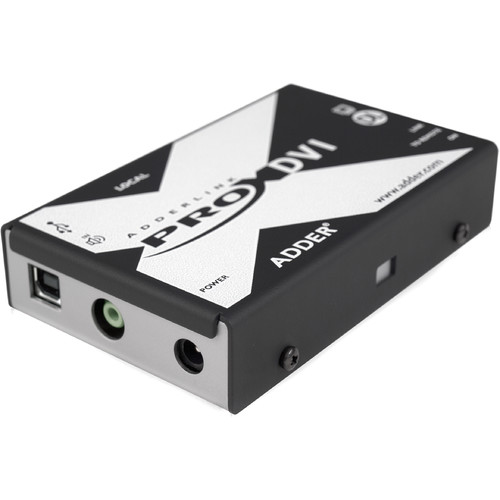

Inputs/Outputs Transmitter:
1 x DVI-DInput
1 x 1/8″ / 3.5 mm (Audio)Input
1 x USB-B 2.0Input
Receiver:
1 x DVI-DOutput
1 x 1/8″ / 3.5 mm (Audio)Output
4 x USB-A 2.0Output
Supported Resolutions 2560 x 1600 @ 60 Hz
Maximum Transmission Distance 164′ / 50 m
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 0.4 A
Power Consumption 12.5 W
DC Input Power 5 VDC at 2.5 A
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Physical
Certifications CE, FCC
*as per Manufacturer
Dimensions 4.7 x 3.0 x 1.0″ / 120.0 x 75.0 x 26.0 mm
Weight 11.3 oz / 320.0 g
