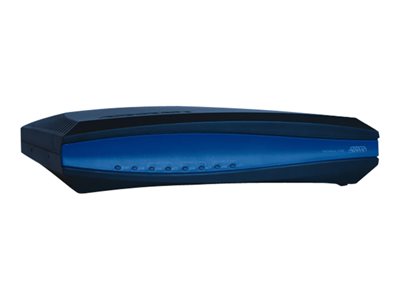

ADTRAN NetVanta 3140 – router – desktop
Tech overview
2,699.00 د.إ
The NetVanta 3140 rack mountable platform is a fixed-port, high-performance Ethernet router supporting converged access and high-quality voice services. It provides three routed, autosensing Gigabit Ethernet interfaces. This product is ideal for carrier-bundled service offerings, and enterprise class Internet access for secure, high-speed corporate connectivity.
The NetVanta 3140 is ideal for multiple applications where Ethernet redundancy is needed given the three Gigabit ports that can be either LAN or WAN facing. This can be achieved with two Ethernet delivered access services providing immediate failover to the active link anytime a link down event occurs. Many deployments still feature separate voice and data networks making the NetVanta 3140 a perfect fit with a single Gigabit WAN link, and two LAN facing Gigabit interfaces.
| Specifications |
|---|
| General |
| Device Type | Router |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | ICMP/IP, PPPoE |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, IGMPv2, VRRP, GRE |
| Remote Management Protocol | SNMP 2, SNMP, Telnet, SNMP 3, HTTP, CLI |
| Encryption Algorithm | DES, Triple DES, AES |
| Authentication Method | Secure Shell (SSH), RADIUS, PAP, CHAP, TACACS+ |
| Features |
| Firewall protection | Yes |
| Auto-sensing per device | Yes |
| NAT support | Yes |
| VPN support | Yes |
| NAPT support | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Syslog support | Yes |
| DoS attack prevention | Yes |
| Packet filtering | Yes |
| DiffServ support | Yes |
| IPv6 support | Yes |
| URL filtering | Yes |
| Full duplex mode | Yes |
| Weighted Fair Queuing (WFQ) | Yes |
| Virtual Route Redundancy Protocol (VRRP) support | Yes |
| Voice Quality Monitoring (VQM) | Yes |
| Access Control List (ACL) support | Yes |
| Quality of Service (QoS) | Yes |
| DHCP server | Yes |
| DHCP relay | Yes |
| DHCP client | Yes |
| Mean Opinion Score (MOS) | Yes |
| Compliant Standards |
| IEEE 802.1Q | Yes |
| IEEE 802.1x | Yes |
| UL | Yes |
| C-Tick | Yes |
| RoHS | Yes |
| FCC Part 15 A | Yes |
| Status Indicators |
| Power | Yes |
| Link/activity | Yes |
| USB | Yes |
| IP Telephony |
| VoIP Protocols | SIP |
| IP Telephony Features | Back-to-Back User Agent (B2BUA) |
| Expansion / Connectivity |
| Interfaces |
| WAN / LAN | 3 x 10Base-T/100Base-TX/1000Base-T – RJ-45 |
| Management | 1 x console – 9 pin D-Sub (DB-9) |
| USB 2.0 | 1 x |
| Power |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements |
| OS Provided | ADTRAN OS |
| Dimensions & Weight |
| Width | 9 in |
| Depth | 6.4 in |
| Height | 1.6 in |
| Weight | 15.87 oz |
