Routers

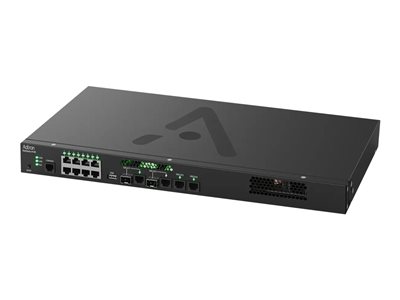

ADTRAN NetVanta 4148P – router – rack-mountable
Tech overview
ADTRAN NetVanta 4148P – Router – 8-port switch – GigE – WAN ports: 4 – rack-mountable
21,999.00 د.إ
The NetVanta 4148 is a fixed-port, high performance Ethernet router supporting converged access and high-quality voice services. It provides four routed, autosensing Gigabit interfaces, an 8-port Ethernet switch, and includes PoE. This product is ideal for carrier bundled service offerings up to 1 Gbps, and enterprise-class Internet access for secure, high-speed corporate connectivity. The NetVanta 4148 is available as a 1U-high rack mountable platform.
General
| Attribute | Details |
|---|---|
| Device Type | Router – 8-port switch (integrated) |
| Enclosure Type | Rack-mountable – 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Performance
| Attribute | Details |
|---|---|
| Throughput | 3.5 Mpps |
Network / Transport Protocol
| Attribute | Details |
|---|---|
| Network / Transport Protocol | PPPoE |
Routing Protocol
| Attribute | Details |
|---|---|
| Routing Protocol | OSPF, RIP-1, RIP-2, IGMPv2, VRRP, PIM-SM, GRE, Two-Way Active Measurement Protocol (TWAMP) |
Remote Management Protocol
| Attribute | Details |
|---|---|
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, SSH |
Authentication Method
| Attribute | Details |
|---|---|
| Authentication Method | Secure Shell (SSH), RADIUS, PAP, CHAP, TACACS+ |
Features
| Attribute | Details |
|---|---|
| Features | NAT support, NAPT support, auto-negotiation, Syslog support, Stateful Packet Inspection (SPI), content filtering, packet filtering, DiffServ support, full duplex mode, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Voice Quality Monitoring (VQM), Access Control List (ACL) support, Quality of Service (QoS), DHCP server, DHCP relay, NetFlow, DHCP client, Multi-Level account access, multihoming, Application Level Gateways (ALGs), Denial of Service (DoS) protection, Mean Opinion Score (MOS) Prediction, traffic monitoring, packet jitter, packet drop/loss, VLAN trunking, NTP support, SMTP alerts, 200W PoE power budget, SSH command line interface, n-Command support, TCL scripting, login privilege levels, PPP dial backup, Multi-VRF CE, layer 3 backup |
Compliant Standards
| Attribute | Details |
|---|---|
| Compliant Standards | IEEE 802.1Q, IEEE 802.3af, IEEE 802.1x, IEEE 802.3at, UL, C-Tick, cUL, RoHS, FCC Part 15 A |
Status Indicators
| Attribute | Details |
|---|---|
| Status Indicators | Port status, power, PoE, USB |
IP Telephony
| Attribute | Details |
|---|---|
| VoIP Protocols | SIP |
| IP Telephony Features | Back-to-Back User Agent (B2BUA), RFC 1483 support |
Expansion / Connectivity
| Attribute | Details |
|---|---|
| Interfaces | LAN: 8 x 10Base-T/100Base-TX/1000Base-T (PoE+) – RJ-45 <br> Management: 1 x console – RJ-45 <br> USB 2.0: 1 x 4 pin USB Type A <br> WAN / LAN: 2 x 1000Base-T – RJ-45 <br> WAN / LAN: 2 x 1000Base-T/1000Base-X – RJ-45/SFP |
Power
| Attribute | Details |
|---|---|
| Power Device | Internal power supply |
| Voltage Required | AC 100-250 V (50/60 Hz) |
Software / System Requirements
| Attribute | Details |
|---|---|
| OS Provided | ADTRAN OS |
Dimensions & Weight
| Attribute | Details |
|---|---|
| Width | 17.3 in |
| Depth | 9.6 in |
| Height | 1.8 in |
| Weight | 7.94 lbs |
