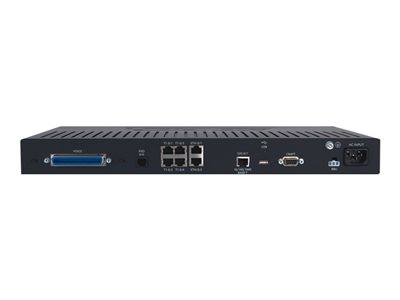

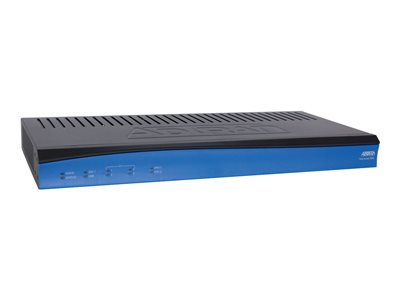

ADTRAN Total Access 916e Gen 3 – router – desktop, rack-mountable, wall-mountable

Adtran Total Access 916e Gen 3 Product Overview

The Adtran Total Access 916e (4243916F1) is a market leading IP Business Gateway designed for carrier Ethernet and SIP/MGCP VoIP networks. The Adtran Total Access 916e has a quad T1/FT1 and RJ-48C interface, a USB 2.0 interface, one Interface for Gigabit Ethernet, two for Fast Ethernet, full duplex RJ-45, and supports 802.1q VLAN trunking. The Adtran Total Access 916e has 16 FXS analog POTS interface and can support digital codecs G.711-64k PCM G.729a-8k CS-ACELP, producing seamless voice and data integrations over IP-based networks.

Adtran Total Access 900e Gen 3 Series Overview

The Adtran Total Access 900e Gen 3 Series are market leading IP Business Gateways, following the standards set by previous Total Access Series but with 66% higher performance and additional features. The Adtran Total Access 900e Gen 3 Series efficiently utilizes bandwidth, acts as a full featured business-class IP router, supports several calling features.

Following its predecessor IP Business Gateways, the Adtran Total Access 900e Gen 3 Series brings everything you’d expect from the previous generation and more. The feature rich Adtran Operating System (AOS) provides a stageful inspection firewall for network security and allows for interoperability with industry leading soft switches, feature servers and the Adtran Netvanta PoE switch for connectivity to a variety of VoIP devices and Wireless Access Points. The Total Access 900e Gen 3 Series has optional enterprise Session Border Control functionality, and it can act as a registrar for remote survivability, provide QoS, security, routing, and Voice Quality Monitoring (VQM).

Adtran Total Access Adtran Total Access 916e Features:

• G.168 Echo Cancellation
• Low latency, WFQ, CBWFQ Quality of Service (QoS)
• Command Line Interface (CLI), Web-Graphical User Interface (GUI)
• Network Address Translation (NAT) for IP Address Concealment
• AC power with battery backup
• Feature-rich Adtran Operating System (AOS)
• Routing protocols: static, RIP, OSPF, BGP
• 916e features T1 bonding with MLPPP/MLFR for high-speed network connections and optional hardware encrypted DES/3DES/AES IPSec VPN
