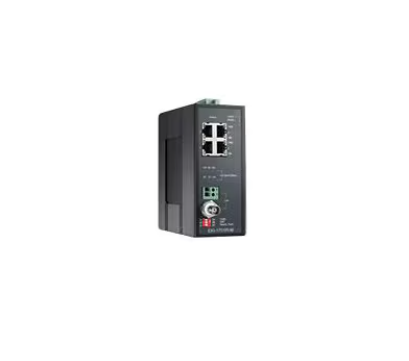

Advantech EKI-1751PI-M – network extender – Ethernet over VDSL2

Add to Wishlist

Quick tech specs

  • IP30 Rated Enclosure
  • LED Indicators for Power,PoE and Other Status
  • Operates Over Existing CAT3 Cabling or Coaxial (Combo Port)
  • 30W for PoE+ per Ethernet Port
  • Provides Over Current Protection
  • Power Over Ethernet (PoE+)

2,899.00 د.إ

Add to Wishlist

Know your gear

The IMC Advantech EKI-1751PI-M and EKI-1751PI-R are Industrial Long Reach Power over Ethernet Extenders to utilize existing copper cabling infrastructure (twisted pair or coaxial cable) extending Ethernet to up to 2000 meters over VDSL2. As an endspan unit, the Remote relies on its source of power and can provide 30-watts of power for each RJ-45 port to PD devices (up to 120-watts total), such as PTZ cameras, Wireless AP and VoIP phones.

Both EKI-1751PI-M and EKI-1751PI-R comply with IEEE 802.3af/at standards, ensuring interoperability with a variety of compliant PD devices in the market. The EKI-1751PI-M and EKI-1751PI-R provide a unique PoE solution in the industry, offering flexibility and reliability.

SKU: EKI-1751PI-M-AE Category: Tag:
Overview
Brand Advantech
Product Line Advantech
Model EKI-1751PI-M
Manufacturer IMC Networks
Network & Communication
Compliant Standards IEEE 802.3af, IEEE 802.3at
Connectivity Technology Wired
Data Link Protocols Ethernet over VDSL2
Data Transfer Rate 100 MBps
Features 120W PoE power budget, Metal housing
Form Factor Wall / DIN rail mountable
Max Transfer Distance 1.2 miles
Power Over Ethernet (PoE) PoE+
Product Type Network extender
Status Indicators Link/activity/speed, PoE, Power
Connectivity
Interface Provided 1 x VDSL2 – BNC, 1 x VDSL2 – terminal block, 4 x Ethernet 10Base-T/100Base-TX – RJ-45 female – 30 W
Power
Power Consumption Operational 65 watt
Power Supplies Supported 2
Redundant Power Supply Yes
Technical Information
Max Operating Temperature 167°F
Min Operating Temperature -40°F
Operating Humidity 5 – 95% (non-condensing)
Product Information
Packaged Quantity 1
Dimensions & Weight
Height 5.3 inch
Width 2.5 inch
Depth 4.2 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards cULus, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, FCC Class A certified, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30, RoHS, UL 60950
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
