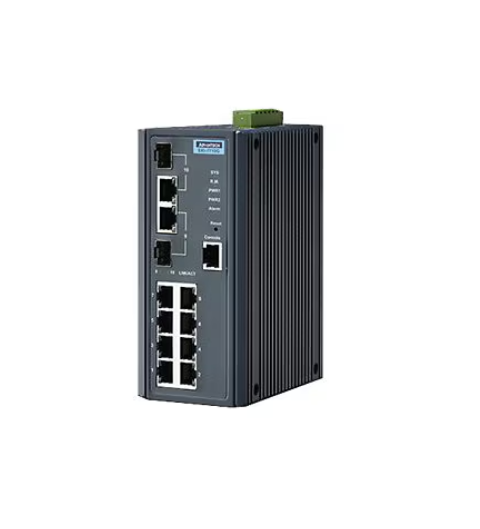

Advantech EKI-7710G-2CI – switch – 10 ports – managed

Add to Wishlist

Quick tech specs

  • 7710G-2CI
  • managed
  • DIN rail mountable, wall-mountable
  • Switch
  • 8 x 10/100/1000 + 2 x combo Gigabit SFP
  • DC power

AED8,299.00

Add to Wishlist

Know your gear

EKI-7710G-2CI-AE offers 8 Gigabit ports + 2 Gigabit copper/SFP combo ports and an SFP socket for easy and flexible fiber expansion.
SKU: EKI-7710G-2CI-AE Category: Tag:
Category Details
Overview
Brand Advantech
Product Line Advantech
Model EKI-7710G-2CI
Manufacturer IMC Networks
Network & Communication
Compliant Standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP)
Features 4.1MB packet buffer, Broadcast Storm Control, Class of Service (CoS), DHCP client/server, DSCP based CoS, Dynamic VLAN Support (GVRP), Generic VLAN Registration Protocol (GVRP), IGMP snooping, IPv6 support, Link Aggregation Control Protocol (LACP), Metal housing, MLD snooping, Multicast Storm Control, MSTP support, Port mirroring, QoS, RSTP support, SNTP support, STP support, Strict Priority (SP), Trivial File Transfer Protocol (TFTP), Trunking, Unicast Storm Control, VLAN Stacking, VLAN support, WRR, X-Ring Pro support
Form Factor (Hubs & Switches) DIN rail mountable, Wall-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 8K entries
Manageable Yes
Ports 10
Product Type Switch
Remote Management HTTP, RMON, SNMP 1/2c/3, SSH-2, Telnet, TFTP
Status Indicators Alarm, Link/activity, Port transmission speed, Power, System
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 1 x serial (RS-232) RJ-45 management, 10 x 1000Base-T RJ-45, 2 x 1000Base-X SFP
Port Quantity 8
Port Type 10/100/1000
Ports Type (2nd) Combo Gigabit SFP
Power
Features Power Polarity Reverse Protect, Redundant Power System (RPS) connector
Power Consumption Operational 12.1 watt
Redundant Power Supply Yes
Technical Information
Humidity Range Storage 10 – 95% (non-condensing)
Max Operating Temperature 167 degrees Fahrenheit
Max Storage Temperature 185 degrees Fahrenheit
Min Operating Temperature -40 degrees Fahrenheit
Min Storage Temperature -40 degrees Fahrenheit
MTBF 858,835 Hours
Operating Humidity 10 – 95% (non-condensing)
Product Information
Packaged Quantity 1
Performance Switching fabric speed: 20 Gbps
Ports (2nd) Quantity 2
Dimensions & Weight
Height 6 inch
Weight 2.43 lbs
Width 2.9 inch
Depth 4.1 inch
Physical Characteristics
Color Category Gray
Certifications & Listings
Compliant Standards EN 50121-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, FCC Class A certified, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30, NEMA TS-2
ENERGY STAR Certified No
