Power Injectors

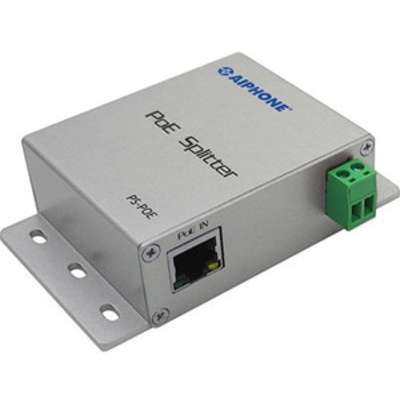

Aiphone Corporation PS-PoE Power Splitter for IX
- Powers the strobe light on emergency towers and wall boxes via PoE instead of using a separate power supply
- Compact design is discreet and easy to install
- Can be secured to mounting studs on back of IX Series 2 stations or 1-gang box
AED1,199.00
The PS-POE is a PoE splitter that provides a 24V DC output to power the strobe light in Aiphone’s wall boxes and towers. The IX Series 2 emergency stations have a secondary PoE output (passthrough) that can be used to connect to this splitter. The PoE passthrough will only be usable if the IX Series station is connected and powered via a PoE+ switch.
| General Information | |
| Product Name | PS-PoE Power Splitter for IX |
| Manufacturer Part Number | PS-POE |
| Product Type | PoE Splitter |
| Interfaces/Ports | |
| Input Ports | PoE |
| Physical Characteristics | |
| Height | 3.3″ |
| Width | 2.5″ |
| Depth | 1″ |
| Miscellaneous | |
| Compatibility | Aiphone IX Series Station |
| Country of Origin | China |
Based on 0 reviews
Be the first to review “Aiphone Corporation PS-PoE Power Splitter for IX”
