AIR-AP2802I-H-K9C – Cisco Aironet 2802i Access Point
802.11ac Wave 2 AP w/CleanAir, 4×4:3, Internal Antenna, H Regulatory Domain, Configurable
AED10,899.00
AIR-AP2802I-H-K9C Overview
AIR-AP2802I-H-K9C is one of the Cisco Aironet 2800 Series Access Points. This 2800 series, delivering new 802.11ac Wave 2 standard, is ideal for large enterprise organizations that rely on Wi-Fi to engage with customers. The Series is a hands-off product thatās intelligent enough to make decisions based on end-device activities and usage. AIR-AP2802I-H-K9C provides internal antenna and H regulatory domain. It also supports configurable Dual-band controller-based 802.11a/g/n/ac.
Quick Specs
Table 1
| Product Code | AIR-AP2802I-H-K9C |
| Feature | Dual-band controller-based 802.11a/g/n/ac, configurable |
| Frequency band and 20-MHz operating channels | H (H regulatory domain):
– 2.412 to 2.472 GHz; 13 channels – 5.150 to 5.350 GHz; 8 channels – 5.745 to 5.825 GHz; 5 channels |
| Antenna | Internal Antenna |
| Features | – 4×4 MU-MIMO with three spatial streams
– MRC – 802.11ac Beamforming – 20-, 40-, 80, 160-MHz channels – PHY data rates up to 5.2 Gbps – Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) – 802.11 DFS – CSD support |
| Interfaces | – 2 x 100/1000BASE-T autosensing (RJ-45)
– Management console port (RJ-45) – USB 2.0 (enabled via future software) |
| System memory | – 1024 MB DRAM
– 256 MB flash |
| Dimensions (W x L x H) | 8.66 x 8.68 x 2.17 in. |
| Net Weight | 3.53 lb (1.6 kg) |
Product Details

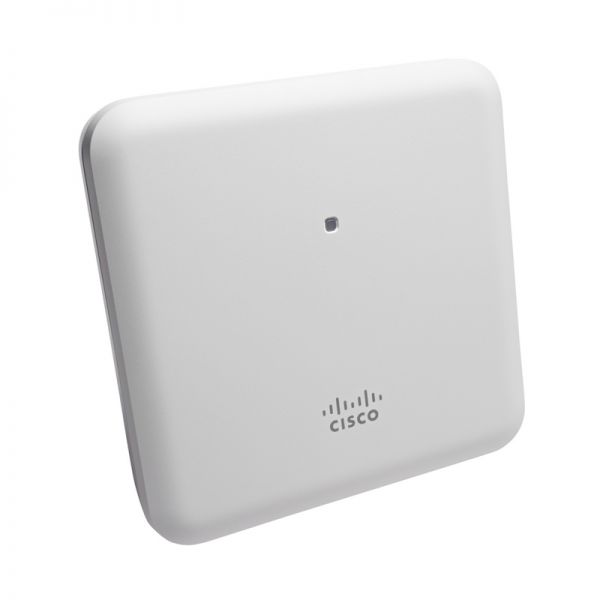

Figure 1 shows the face of AIR-AP2802I Model.
Notes:
There is a LED in the face of this AP.
Figure 2 shows Ports and Connectors on the Head of the 2802I Model.
Noteļ¼
| ā | Mode button | ā£ | Gigabit Ethernet port |
| ā” | Console port | ā¤ | Gigabit Ethernet port |
| ā¢ | USB port | ā„ | Kensington lock slot |
AIR-AP2802I-H-K9C Specification
802.11ac Wave 2 AP w/CleanAir, 4×4:3, Internal Antenna, H Regulatory Domain, Configurable
