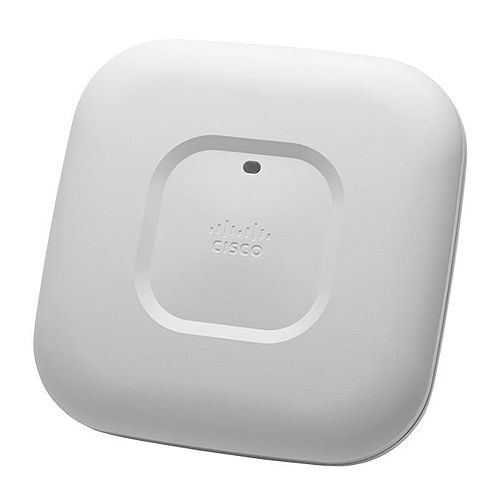

AIR-CAP2702I-H-K9 Cisco Aironet 2700 Series Wireless Access point

Add to Wishlist

AIR-CAP2702I-H-K9 Cisco Aironet 2700 Series Wireless Access point

6,299.00 د.إ

Add to Wishlist

AIR-CAP2702I-H-K9 Overview

Based on the Cisco Aironet heritage of RF excellence, the 2700 Series utilizes a Purpose-built innovative chipset to provide a high density experience for enterprise network. 3 x 4 MIMO (multiple-input multiple-output) technology with three-spatial-stream offers a greater coverage for more reliability and capacity than competing access points. AIR-CAP2702I-H-K9 is one of the 2700 series AP, needing wireless controller, providing internal antenna and H regulatory domain.

Quick Specs

Table 1

Product Code AIR-CAP2702I-H-K9
WiFi Standards 802.11a/b/g/n/ac
Ideal For Midsize or large enterprises that require advanced features
Max Data Rate 5GHz 1.3 Gbps
MIMO Radio Design: Spatial Streams 3 x 4:3
Client count/ClientLink client count 200/128
Controller Available Yes
Power – 802.3at PoE+

– Enhanced PoE

– Cisco AP2700 power injectors

– Cisco AP2700 local power supply

Note: If 802.3af PoE is the source of power, the access point will dynamically shift

from 3×4 to 3×3 and come up under PoE.
Antenna Internal Antenna
Regulatory Domain H (H regulatory domain):

– 2.412 to 2.472 GHz; 13 channels

– 5.150 to 5.350 GHz; 8 channels

– 5.745 to 5.825 GHz; 5 channels
Dimensions (W x L x H) 22.1 x 22.1 x 5.1 cm (without mounting bracket)
Package Weight 2.0 Kg
SKU: AIR-CAP2702I-H-K9 Category: Tag:

AIR-CAP2702I-H-K9 Specification

AIR-CAP2702I-H-K9 Specification
Product Description Cisco Aironet 2700 Series Access Points with Internal antennas
Devide Type WirelessĀ Ā Access point
Regulatory domain H regulatory domain
Supported wireless LAN controllers
  • ā— Cisco 2500 Series Wireless Controllers
    ā— Cisco Wireless Controller Module for ISR G2
    ā— Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches
    ā— Cisco 5500 Series Wireless Controllers
    ā— Cisco Flex 7500 Series Wireless Controllers
    ā—Ā Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller
    ā—Ā Cisco 5760 Wireless LAN Controller
    ā—Ā Cisco Catalyst 3850 Series Switches
    ā—Ā Cisco Catalyst 3650 Series Switches
Software Cisco Unified Wireless Network Software Release 7.6MR2 or later
Data rates supported
  • ā— 802.11a: up to 54 Mbps
    ā—Ā 802.11g: up to 54 Mbps
  • ā— 802.11n on 2.4 GHz: up to 216.7 Mbps
    ā—Ā 802.11ac on 5 GHz: up to 1.3Gbps
Maximum number of nonoverlapping channels 5 GHz
ā—Ā Ā 802.11a:
ā—¦Ā Ā Ā 20 MHz: 21
ā—Ā Ā 802.11n:
ā—¦Ā Ā Ā 20 MHz: 21
ā—¦Ā Ā Ā 40 MHz: 9
ā—Ā Ā 802.11ac:
ā—¦Ā Ā Ā 20 MHz: 21
ā—¦Ā Ā Ā 40 MHz: 9
ā—¦Ā Ā Ā 80 MHz: 42.4 GHz
ā—Ā Ā 802.11b/g:
ā—¦Ā Ā Ā 20 MHz: 3
ā—Ā Ā 802.11n:
ā—¦Ā Ā Ā 20 MHz: 3
Antenna (purchase separately)
  • Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
  • Cisco offers the industry’s broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
Interfaces
  • 10/100/1000BASE-T autosensing (RJ-45)
  • Management console port (RJ-45)
System memory
  • 512 MB DRAM
  • 64 MB flash
Power consumption 15 Watts
IEEE standards
  • IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
  • IEEE 802.11ac Draft 5
SecurityĀ
  • ā— 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
    ā—Ā 802.1X
  • ā— Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)
Extensible Authentication Protocol (EAP) types
  • ā— EAP-Transport Layer Security (TLS)
    ā—Ā EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
    ā—Ā Protected EAP (PEAP) v0 or EAP-MSCHAPv2
  • ā— EAP-Flexible Authentication via Secure Tunneling (FAST)
    ā—Ā PEAP v1 or EAP-Generic Token Card (GTC)
    ā—Ā EAP-Subscriber Identity Module (SIM)
Frequency band and 20-MHz operating channels H (H regulatory domain):
ā—Ā Ā 2.412 to 2.472 GHz; 13 channels
ā—Ā Ā 5.150 to 5.350 GHz; 8 channels
ā—Ā Ā 5.745 to 5.825 GHz; 5 channels
Environmental
  • ā— Nonoperating (storage) temperature: -22Ā° to 158Ā°F (-30Ā° to 70Ā°C)
    ā—Ā Nonoperating (storage) altitude test: 25ĖšC, 15,000 ft.
    ā—Ā Operating temperature: -4Ā° to 122Ā°F (-20Ā° to 50Ā°C)
  • ā— Operating humidity: 10% to 90% percent (noncondensing)
    ā—Ā Ā Operating altitude test: 40ĖšC, 9843 ft.
