AIR-CT5508-100-K9 Cisco 5500 Series Wireless Controller
|
Cisco 5500 Controller AIR-CT5508-100-K9 Cisco 5508 Series Wireless Controller for up to 100 APs
|
AED219,999.00
AIR-CT5508-100-K9 Overview
AIR-CT5508-100-K9 includes 100 access point licenses and delivers superior 802.11n/ac performance that optimized up to nine times wireless performance of 802.11a/g networks.Ā It supports up to 500 access points and 7000 clients with necessary licenses.
Quick Specs
Figure 1 shows the appearance of AIR-CT5508-100-K9.
Table 1 shows the Quick Specs.
| Product Code | AIR-CT5508-100-K9 |
| Access pointsĀ | 100 licenses include (500 licenses max) |
| Device Type | Wireless controller |
| Ports | 8 x SFP uplinks |
| Console ports | 10/100/1000 RJ-45 |
| Wireless standards | 802.11a/b/g/d/e/h/k/n/r/u/w/ac |
| Dimensions (W x D x H) | 44 x 53.9 x 4.45 cm |
Product Details

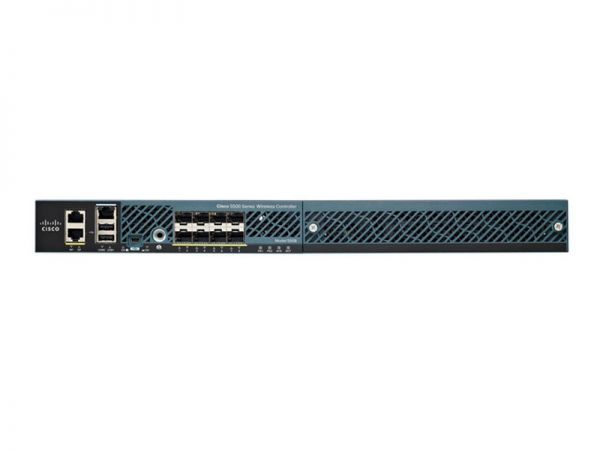

Figure 2 shows the front panel of AIR-CT5508-100-K9.
Noteļ¼
| ā | Service port (RJ-45) | ā¤ | Console port (Mini USB Type B) |
| ā” | Console port (RJ-45) | ā„ | SFP distribution ports |
| ā¢ | Redundant port (RP) for future use (RJ-45) | ā¦ | Management port LEDs |
| ā£ | USB ports 0 and 1 (Type A) | ā§ | Expansion module (EM) slot |
Ā· You can use only one console port (either RJ-45 or mini-USB). When you connect to one console port, the other is disabled.
Figure 3 shows the back panel of AIR-CT5508-100-K9.
Note:
| ā | Power supply PS1 | ā£ | Power supply PS2 slot with blank cover |
| ā” | Power supply PS1 on/off switch | ā¤ | Fan tray |
| ā¢ | Power supply PS1 AC cable connection |
AIR-CT5508-100-K9 Specification
AIR-CT5508-100-K9 Specifications |
|
| Access pointsĀ | 100 licenses include (500 licenses max) |
| Device Type | Wireless controller |
| Ports | 8 * SFP uplinks |
| Console ports | 10/100/1000 RJ-45 |
| Wireless standards | 802.11a/b/g/d/e/h/k/n/r/u/w/ac |
| License | ā 5 AP licese: L-LIC-CT5508-5A āĀ 25 AP licese: L-LIC-CT5508-25A āĀ 50 AP licese: L-LIC-CT5508-50A ā 100 AP licese: L-LIC-CT5508-100A āĀ 250 AP licese: L-LIC-CT5508-250A āĀ DTLS License: L-LIC-CT55-LPE-K9 |
| Security standards | ā Ā Wi-Fi Protected Access (WPA) āĀ Ā IEEE 802.11i (WPA2, RSN) āĀ Ā RFC 1321 MD5 Message-Digest Algorithm āĀ Ā RFC 1851 The ESP Triple DES Transform āĀ Ā RFC 2104 HMAC: Keyed Hashing for Message Authentication āĀ Ā RFC 2246 TLS Protocol Version 1.0 āĀ Ā RFC 2401 Security Architecture for the Internet Protocol āĀ Ā RFC 2403 HMAC-MD5-96 within ESP and AH āĀ Ā RFC 2404 HMAC-SHA-1-96 within ESP and AH āĀ Ā RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV ā Ā RFC 2406 IP Encapsulating Security Payload (ESP) āĀ Ā RFC 2407 Interpretation for ISAKMP āĀ Ā RFC 2408 ISAKMP āĀ Ā RFC 2409 IKE āĀ Ā RFC 2451 ESP CBC-Mode Cipher Algorithms āĀ Ā RFC 3280 Internet X.509 PKI Certificate and CRL Profile āĀ Ā RFC 3602 The AES-CBC Cipher Algorithm and Its Use with IPsec āĀ Ā RFC 3686 Using AES Counter Mode with IPsec ESP āĀ Ā RFC 4347 Datagram Transport Layer Security āĀ Ā RFC 4346 TLS Protocol Version 1.1 |
| Encryption | ā WEP and Temporal Key Integrity Protocol-Message Integrity Check (TKIP-MIC): RC4 40, 104 and 128 bits (both static and shared keys) āĀ Ā Advanced Encryption Standard (AES): CBC, CCM, Counter Mode with Cipher Block Chaining Message Authentication Code Protocol (CCMP) ā Ā DES: DES-CBC, 3DES āĀ Ā Secure Sockets Layer (SSL) and Transport Layer Security (TLS): RC4 128-bit and RSA 1024- and 2048-bit āĀ Ā DTLS: AES-CBC āĀ Ā IPSec: DES-CBC, 3DES, AES-CBC |
| Authentication, Authorization, and Accounting (AAA) | ā Ā IEEE 802.1X āĀ Ā RFC 2548 Microsoft Vendor-Specific RADIUS Attributes āĀ Ā RFC 2716 PPP EAP-TLS āĀ Ā RFC 2865 RADIUS Authentication āĀ Ā RFC 2866 RADIUS Accounting āĀ Ā RFC 2867 RADIUS Tunnel Accounting ā Ā RFC 3576 Dynamic Authorization Extensions to RADIUS āĀ Ā RFC 3579 RADIUS Support for EAP āĀ Ā RFC 3580 IEEE 802.1X RADIUS Guidelines āĀ Ā RFC 3748 Extensible Authentication Protocol āĀ Ā Web-based authentication āĀ Ā TACACS support for management users |
