AIR-LAP1131G-E-K9 (USED) Overview

The Cisco® Aironet® 1130G Series Access Point AIR-LAP1131G-E-K9 is a single-band 802.11g access point that features business-class management, security, and scalability. This low-profile access point offers high-performance wireless connectivity in offices and similar environments.

The Cisco Aironet 1130G Series is available in two versions: unified or autonomous. Unified access points operate with the Lightweight Access Point Protocol (LWAPP) and work in conjunction with Cisco wireless LAN controllers and the Cisco Wireless Control System (WCS). When configured with LWAPP, the Cisco Aironet 1130G Series can automatically detect the best-available Cisco wireless LAN controller and download appropriate policies and configuration information with no manual intervention. Autonomous access points are based on Cisco IOS® Software and can optionally operate with the CiscoWorks Wireless LAN Solution Engine (WLSE). Autonomous access points, along with the CiscoWorks WLSE, deliver a core set of features and can be field-upgraded to take full advantage of the benefits of the Cisco Unified Wireless Network as requirements evolve.

Quick Spec

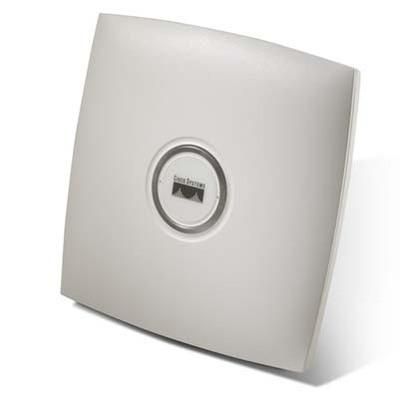

Figure 1 shows the appearance of AIR-LAP1131G-E-K9.

CISCO-AIR-LAP1131G-E-K9

Table 1 shows the quick spec.

Part Number AIR-LAP1131G-E-K9
Product Description 802.11g Integrated Unified AP; Int Antennas; ETSI Cnfg 1130G Series Access Points
System Memory • 32 MB RAM

• 16 MB flash memory
Input Power Requirements • 100-240 VAC; 50-60 Hz (power supply)

• 36-57 VDC (device)
Power Draw 9.91W maximum
Dimensions (H x W x D) 7.5 in. x 7.5 in. x 1.3 in. (19.1 x 19.1 x 3.3 cm)
Weight 1.5 lb (0.67 kg)
Network Standard IEEE 802.11b and 802.11g
Data Rates Supported 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
SKU: AIR-LAP1131G-E-K9 (USED) Category: Tag:

AIR-LAP1131G-E-K9 (USED) Specification

AIR-LAP1131G-E-K9 Specification
Part Number AIR-LAP1131G-E-K9
Product Description 802.11g Integrated Unified AP; Int Antennas; ETSI Cnfg 1130G Series Access Points
Software Cisco Unified Wireless Network Software
Data Rates Supported 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
Network Standard IEEE 802.11b and 802.11g
Uplink Autosensing 802.3 10 and 100BASE-T Ethernet
Frequency Band and Operating Channels Americas (FCC)

• 2.412 to 2.462 GHz; 11 channels

• ETSI

• 2.412 to 2.472 GHz; 13 channels

Japan (TELEC)

• 2.412 to 2.472 GHz; 13 channels Orthogonal Frequency Division Multiplexing (OFDM)

• 2.412 to 2.484 GHz; 14 channels Complementary Code Keying (CCK)

• 5.15 to 5.25 GHz; 4 channels

Japan-P (TELEC 2 (Japan2) Cnfg)

• 2.412 to 2.472 GHz; 13 channels Orthogonal Frequency Division Multiplexing (OFDM)

• 2.412 to 2.484 GHz; 14 channels Complementary Code Keying (CCK)

• 5.15 to 5.35 GHz, 8 channels

Japan-Q

• 2.412 to 2.472 GHz; 13 channels Orthogonal Frequency Division Multiplexing (OFDM)

• 2.412 to 2.484 GHz; 14 channels Complementary Code Keying (CCK)

• 5.15 to 5.35 GHz; 8 channels

• 5.470 to 5.725 GHz; 11 channels
Nonoverlapping Channels 802.11b/g: 3
Receive Sensitivity (Typical) 802.11g:

• 1 Mbps: -93 dBm

• 2 Mbps: -91 dBm

• 5.5 Mbps: -88 dBm

• 6 Mbps: -86 dBm

• 9 Mbps: -85 dBm

• 11 Mbps: -85 dBm

• 12 Mbps: -84 dBm

• 18 Mbps: -83 dBm

• 24 Mbps: -79 dBm

• 36 Mbps: -77 dBm

• 48 Mbps: -72 dBm

• 54 Mbps: -70 dBm
Available Transmit Power Settings (Maximum Power Setting Will Vary by Channel and According to Individual Country Regulations) 802.11b:

CCK:

• 20 dBm (100 mW)

• 17 dBm (50 mW)

• 14 dBm (25 mW)

• 11 dBm (12 mW)

• 8 dBm (6 mW)

• 5 dBm (3 mW)

• 2 dBm (2 mW)

• -1 dBm (1 mW)

 802.11g:

OFDM:

• 17 dBm (50 mW)

• 14 dBm (25 mW)

• 11 dBm (12 mW)

• 8 dBm (6 mW)

• 5 dBm (3 mW)

• 2 dBm (2 mW)

• -1 dBm (1 mW)


Range Indoor (Distance Across Open Office Environment): Outdoor:
802.11g:

• 100 ft (30m) @ 54 Mbps

• 175 ft (53m) @ 48 Mbps

• 250 ft (76m) @ 36 Mbps

• 275 ft (84m) @ 24 Mbps

• 325 ft (100m) @ 18 Mbps

• 350 ft (107m) @ 12 Mbps

• 360 ft (110m) @ 11 Mbps

• 375 ft (114m) @ 9 Mbps

• 400 ft (122m) @ 6 Mbps

• 420 ft (128m) @ 5.5 Mbps

• 440 ft (134m) @ 2 Mbps

• 450 ft (137m) @ 1 Mbps

 802.11g:

• 120 ft (37m) @ 54 Mbps

• 350 ft (107m) @ 48 Mbps

• 550 ft (168m) @ 36 Mbps

• 650 ft (198m) @ 24 Mbps

• 750 ft (229m) @ 18 Mbps

• 800 ft (244m) @ 12 Mbps

• 820 ft (250m) @ 11 Mbps

• 875 ft (267m) @ 9 Mbps

• 900 ft (274m) @ 6 Mbps

• 910 ft (277m) @ 5.5 Mbps

• 940 ft (287m) @ 2 Mbps

• 950 ft (290m) @ 1 Mbps
Ranges and actual throughput vary based upon numerous environmental factors, so individual performance may differ.
Compliance Standards

Safety

• UL 60950-1

• CAN/CSA-C22.2 No. 60950-1

• UL 2043

• IEC 60950-1

• EN 60950-1

• NIST FIPS 140-2 level 2 validation

Radio Approvals

• FCC Part 15.247

• RSS-210 (Canada)

• EN 300.328 (Europe)

• ARIB-STD 33 (Japan)

• ARIB-STD 66 (Japan)

• AS/NZS 4268.2003 (Australia and New Zealand)

• EMI and Susceptibility (Class B)

• FCC Part 15.107 and 15.109

• ICES-003 (Canada)

• VCCI (Japan)

• EN 301.489-1 and -17 (Europe)

Security

• 802.11i, WPA2, WPA

• 802.1X

• AES, TKIP

• FIPS 140-2 Pre-Validation List

• Common Criteria (when running Cisco IOS Software)

Other

• IEEE 802.11g

• FCC Bulletin OET-65C

• RSS-102
Antennas • 2.4 GHz

• Gain: 3.0 dBi

• Horizontal beam width: 360°
Security Authentication

Security Standards

• WPA

• WPA2 (802.11i)

• Cisco Temporal Key Integrity Protocol (TKIP)

• Cisco Message Integrity Check (MIC)

• IEEE 802.11 Wired Equivalent Privacy (WEP) keys of 40 and 128 bits

802.1X EAP types:

• EAP Flexible Authentication via Secure Tunneling (EAP FAST)

• Protected EAP Generic Token Card (PEAP GTC)

• PEAP Microsoft Challenge Authentication Protocol Version 2 (PEAP MSCHAP)

• EAP Transport Layer Security (EAP TLS)

• EAP Tunneled TLS (EAP TTLS)

• EAP Subscriber Identity Module (EAP SIM)

• Cisco LEAP

Encryption

• Advanced Encryption Standard Counter Mode with Cipher Block Chaining Message Authentication Code Protocol (AES CCMP) encryption (WPA2)

• TKIP (WPA)

• Cisco TKIP

• WPA TKIP

• IEEE 802.11 WEP keys of 40 and 128 bits
Status LEDs External:

• Status LED indicates operating state, association status, error or warning condition, boot sequence, and maintenance status

Internal:

• Ethernet LED indicates status of activity over the Ethernet

• Radio LED indicates status of activity over the radios
Dimensions (H x W x D) 7.5 x 7.5 x 1.3 in. (19.1 x 19.1 x 3.3 cm)
Weight 1.5 lb (0.67 kg)
Environmental Operating

• Altitude: 0 to 2500m

• 32 to 104°F (0 to 40°C)

• 10 to 90% humidity (noncondensing)

Non Operating

• -40 to 158F (-40 to 70C)

• Up to 95% humidity (noncondensing)
System Memory • 32 MB RAM

• 16 MB flash memory
Input Power Requirements • 100-240 VAC; 50-60 Hz (power supply)

• 36-57 VDC (device)
Power Draw 9.91W maximum
