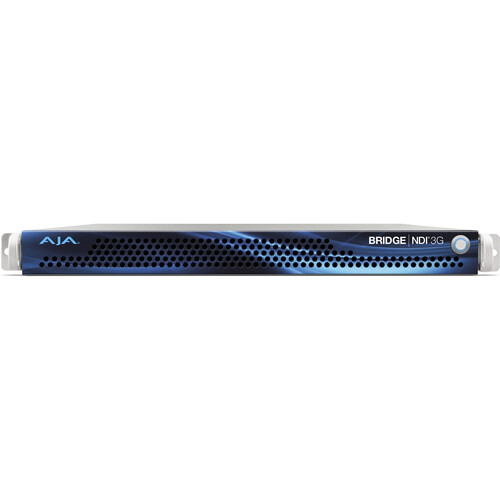

AJA Bridge NDI 3G 3G-SDI to ND/NDI to 3G-SDI Converter

Add to Wishlist
Key Features
  • 3G-SDI to NDI & NDI to 3G-SDI Conversion
  • Supports 16-Ch 1080p or 4-Ch DCI 4K60
  • 16 x 3G-SDI (BNC) Inputs/Outputs
  • 2 x 10 GigE RJ45 Input/Output/Control
  • NDI Input/Output & NDI HX Input
  • Select 8-/16-Bit, 4:2:2 NDI Encoding
  • Video & Key Support
  • 16-Channel Audio Support
  • Dual, Redundant Power Supplies
  • Turnkey, 1 RU Rackmount Form

AED71,499.00

Add to Wishlist

TheĀ Bridge NDI 3G ConverterĀ fromĀ AJAĀ provides high-capacity 3G-SDI to NDI and NDI to 3G-SDI conversion in a compact 1 RU form. Designed to fit into your existing SDI or NDI workflow, this plug-and-play converter is ideal for broadcast, security, sports, entertainment, and other AV applications.

Converter features include support for up to DCI 4K60 4:2:2 10-bit video, 16 x 3G-SDI input/output ports, two x 10 GigE RJ45 input/output ports, support for up to 16-channel embedded audio, and both local and remote control.

3G-SDI to NDI & NDI to 3G-SDI Conversion
  • Bidirectional encoding/decoding from SDI to NDI or NDI to SDI
  • Combination of HD or DCI 4K/UHD 4K video
Applications
Use for broadcasting, eSports, entertainment venues and other facilities and security and surveillance
3G-SDI Input & Output
  • Supports up to 16 channels of 3G-SDI up to 1080p60 HD
  • Supports up to 4 channels of DCI or UHD 4K60
  • Selectable square division or 2SI 4K
Selectable NDI Profiles
Choose between 8-bit and 16-bit, 4:2:2 NDI encoding profiles
16-Channel Audio
  • SDI and ND embedded audio input and output
  • Supports 2, 8, or 16 channels of embedded audio
Flexible Operation
  • HD Input/Output
    • Use all HD channels for SDI to NDI encoding or NDI to SDI decoding
  • HD Video and Key I/O
    • V+K (video and key) grouping enables dual V+K HD SDI signals to be combined and encoded into a single NDI output with an alpha channel
    • Single NDI inputs with an alpha channel can be decoded and output as dual V+K SDI signals
  • Simultaneous Encoding and Decoding
    • Encodes SDI to NDI and decodes NDI to SDI simultaneously
    • Offers a gateway conversion for easily connecting SDI and NDI work areas
All Encoding Modes
Accepts up to 16 incoming HD video signals via 3G-SDI and applies NDI encoding to each channel, enabling up to 16 individual HD NDI channels to be output via 10 GigE.

The same 16 channels of 3G-SDI can also be used to enable:

  • Eight dual-channel video and key groups to NDI outputs
  • Four quad or dual-channel DCI 4K/UHD 4K groups to NDI outputs

When configured for encoding all incoming SDI inputs to NDI outputs, supports:



Simultaneous 3G-SDI inputs:





  • 16 x simultaneous channels up to 60p YCbCr 4:2:2 10-bit

Simultaneous encoding for individual 1080p channels:

  • 16 x simultaneous channels up to 60p

Simultaneous encoding for 1080p video and key pairs:

  • 8 x simultaneous channels up to 60p

Simultaneous encoding for DCI 4K/UHD 4K groups:

  • 4 x simultaneous channels up to 60p

Supported encoded output via 10 GigE:

  • NDI UYVY, 4:2:2, 8-bit, or P216, 4:2:2, 16-bit
All Decoding Modes
Decodes all incoming NDI signals input via the 10 GigE ports directly to the SDI outputs.

Decodes up to 16 x NDI or NDI HX inputs to uncompressed HD video for output via 16x 3G-SDI outputs.

Decodes up to 8 x NDI streams and an alpha channel for conversion and output as 8 x dual 3G-SDI HD video and key channels.

When decoding up to 4x 4K/UltraHD NDI streams, the 16 x connections can support either square division or 2SI for SDI output.

Simultaneous NDI/NDI HX Inputs:

  • 4, 8, or 16 x simultaneous channels up to 60p, UYVY, 4:2:2, 8-bit

Simultaneous 1080p decoding:

  • 16 x simultaneous channels up to 60p

Simultaneous 1080p video and key pairs decoding:

  • 8 x simultaneous channels up to 60p

Simultaneous DCI 4K/UHD DK decoding:

  • 4 x simultaneous channels up to 60p

Supported decoding output via dual 10 GigE ports:

  • YCbCr 4:2:2 10-bit
Encoding/Decoding Combos
Provides up to 8-channel combinations of SDI to NDI encoding and NDI to SDI decoding and SDI to NDI encoding in each direction.
Remote or Local Control
  • Control locally using a mouse and keyboard with a VGA-compatible monitor
  • Remote access for easy control via the same intuitive UI
Monitoring
Confidence monitoring via BNC or VGA video output
SKU: BNDI-3G16-R0 Category: Tag:
Inputs / Outputs
Inputs/Outputs
16x BNC (3G-SDI)
Audio Inputs
No
Video Outputs
1x DE-15/DB-15 (VGA) (Monitor)
Audio Outputs
No
Other I/O
1x RJ45 NDI Input/Output
1x RJ45 Control Input/Output
Expansion Slots
No
Format Support
Input Video Format
RJ45 (8-Bit 4:2:2 YUV)
DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
SDI (10-Bit 4:2:2 YUV)
DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
Output Video Format
RJ45 (16-Bit 4:2:2 P216)
DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
RJ45 (8-Bit 4:2:2 YUV)
DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
SDI (10-Bit 4:2:2 YUV)
DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
Output Audio Format
USB Audio
Embedded Audio
LAN (RJ45)/SDI: 16-Channel
Standards
Video Standard Compliance
SMPTE 292M/424M
HDR Support
Not Specified by Manufacturer
IP Streaming
Video IP Encoding
NDI: 1920 x 1080 to 4096 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50i, 50p, 59.94i, 59.94p, 60p (150 to 250 Mb/s)
NDI: 1920 x 1080 at 50i, 59.94i (150 to 250 Mb/s)
NDI: 1280 x 720 at 50p, 59.94p, 60p (150 to 250 Mb/s)
Video IP Decoding
NDI: 1920 x 1080 to 4096 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p
NDI: 1920 x 1080 at 50i, 59.94i (150 to 250 Mb/s)
NDI: 1280 x 720 at 50p, 59.94p, 60p (150 to 250 Mb/s)
Audio IP Encoding
NDI
Hardware
Wireless
No
Power
Power I/O
2x IEC C14 (100 to 240 VDC ) Input
Power Consumption
Device: 190 W
Environmental
Operating Temperature
41 to 95Ā°F / 5 to 35Ā°C
Storage Temperature
-40 to 140Ā°F / -40 to 60Ā°C
Operating Humidity
8 to 90%
Storage Humidity
5 to 95% (Non-Condensing)
General
Rack Form Factor
1 RU
Certifications
ICES-3(A), CE, FCC
Dimensions
17.2 x 16.9 x 1.7″ / 43.7 x 42.9 x 4.3Ā cm
Weight
18.1Ā lb / 8.2Ā kg
Packaging Info
Package Weight
27.34 lb
Box Dimensions (LxWxH)
25.9 x 23 x 8.1″
