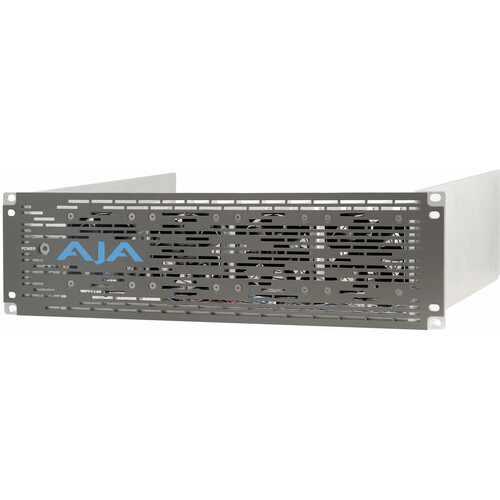

AJA DRM2 Mini-Converter Rackmount Frame with Fan-Cooled Faceplate (3 RU)

Add to Wishlist
Key Features
  • Supports up to 12 AJA Mini-Converters
  • 3 RU High, 19″ Wide Rackmount Form
  • 4-Fan Actively Cooled Faceplate Included
  • 12 Modular Carriers Included
  • 12 Discrete +5VDC Regulated Outputs
  • Remove Converters While Frame is in Rack
  • Remove Faceplate While Frame is in Rack
  • Optional 24 AJA FiDO Converter Y-Cable
  • 200W Universal Power Supply Included

7,499.00 د.إ

Add to Wishlist

Mount, power, and support up to 12 AJA Mini-Converters in one 3 RU rack unit with the AJA DRM2 Mini-Converter Rackmount Frame with Fan-Cooled Faceplate. The DRM2 frame features a power supply incorporating 12 discrete 5V regulated power outputs and an actively cooled faceplate with four fans. The frame supports any 12 Mini-Converters or up to 24AJA FiDO converters using a separately available Y cable.This 3 RU, 19″ wide frame occupies the full width of a standard rack, incorporates 12 mounting slots, and includes 12 modular carriers. It comes with a 100 to 240 VAC, 50/60 Hz power supply that supports up to a total of 200W across its 12 output connections.

Actively Cooled Faceplate
The actively cooled faceplate uses four fans to provide maximum cooling in higher ambient temperatures and/or when using higher-wattage mini-converters.
Redesigned Rackmount
The redesigned rackmount enables you to both detach the faceplate and swap out mini-converters without needing to remove the DRM2 from the rack.
Compatibility
The DRM2 supports any 12 AJA Mini-Converters or 24 AJA FiDO fiber converters using the separately available DRM2-YC Y-cable.
SKU: DRM2-AP Category: Tag:
General
Compatibility
AJA Mini-Converters
Power
Power Source
AC Input
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
5 VDC
Power Consumption
200 W (Maximum)
Power Output
12 x 5 VDC
Environmental
Certifications
FCC, ICES, UKCA, Kcc, VCCI
Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
10 to 90% ()
Storage Temperature
-40 to 140°F / -40 to 60°C
Physical
Mounting
12x Slots
Color
Gray
Dimensions
19 x 15 x 5.25″ / 48.26 x 38.1 x 13.34 cm
Weight
11.2 lb / 5.1 kg (Total: Frame & Faceplate)
Packaging Info
Package Weight
14.375 lb
Box Dimensions (LxWxH)
21 x 19.1 x 7.3″
