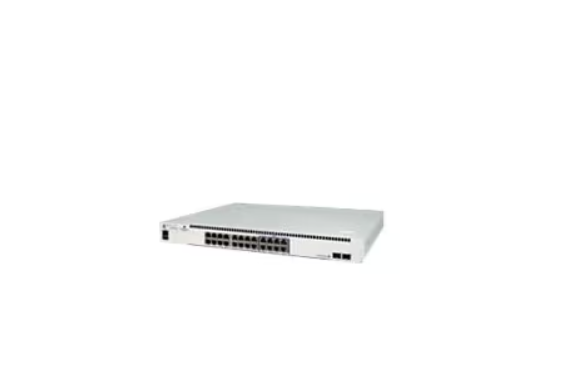

Alcatel-Lucent OmniSwitch 6560-P24Z8 – switch – 24 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • P24Z8
  • L3
  • 8 x 100/1000/2.5G Base-T (HPoE) + 16 x 10/100/1000 Base-T (PoE) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
  • High PoE
  • Switch
  • managed
  • rack-mountable

34,199.00 د.إ

Add to Wishlist

Know your gear

The Alcatel-Lucent OmniSwitch 6560 Stackable Multi-Gigabit Ethernet LAN value switch family is an industry leading campus access solution for enterprise networks. With multi-gigabit ports for high-speed IEEE 802.1ac devices, 10GigE uplinks and 20 GigE stacking, the OmniSwitch 6560 is the right solution for your next generation network.
SKU: OS6560-P24Z8-US Category: Tag:
Category Specification
Overview
Brand Alcatel-Lucent
Product Line Alcatel-Lucent OmniSwitch
Model 6560-P24Z8
Manufacturer Alcatel Internetworking
Memory
Flash Memory Installed 2 GB
RAM Installed 2 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features 2 fans, Access Control List (ACL) support, Auto-uplink (auto MDI/MDI-X), Deficit Round Robin (DRR), DHCP relay, Dynamic ARP protection, Ethernet Ring Protection Switching (ERPS), Host Integrity Check (HIC), In-Service Software Upgrade (ISSU), IPv6 support, LACP support, MAC and IP-based ACLs support, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Network Timing Protocol (NTP), OpenFlow support, Per-VLAN Spanning Tree (PVST), Port Security, Quality of Service (QoS), sFlow v5, Strict Priority Queuing (SPQ), Syslog support, Time Domain Reflectometry (TDR), UDP shaping, Uni-Directional Link Detection (UDLD), Virtual Chassis technology, Virtual Routing and Forwarding (VRF), VoIP support, Weighted Round Robin (WRR) queuing
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 16K entries
Manageable Yes
Ports 24
Power Over Ethernet (PoE) High PoE
Product Type Switch
Remote Management CLI, HTTP, RMON, SCP, SFTP, SNMP, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol IGMP, IGMPv2, IGMPv3, MLD, RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing, VRRP
Stackable Stackable
Status Indicators Link/activity, PoE, Power, System
Subcategory Network hubs and switches
Switching Type 2.5 Gigabit Ethernet
Expansion Slots
QSFP Slots 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
Connectivity
Interface Provided 1 x console, 1 x USB, 16 x 10/100/1000 Base-T RJ-45 PoE, 2 x 1/10Gbit LAN SFP+ uplink/stacking, 8 x 100/1000/2.5G RJ-45 HPoE
Port Quantity 8
Port Type 100/1000/2.5G Base-T (HPoE)
Ports Type (2nd) 10/100/1000 Base-T (PoE)
Power
Hot-Plug Hot-plug
Power Consumption Operational 85 watt
Power Provided 300 watt
Power Supplies Installed 1
Power Supplies Supported 2
Redundant Power Supply Optional
Redundant Power Supply Supported 1+1 (with optional power supply)
Technical Information
Encryption MD5, PKI
Max Operating Temperature 113 degree Fahrenheit
Max Storage Temperature 185 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Operating Humidity 5 – 95% (non-condensing)
Product Information
Authentication Method LDAP, RADIUS, Secure Shell (SSH), TACACS+
Capacity ACL entries: 2000, IPv4 interfaces: 128, IPv4 routes (static): 256, IPv6 interfaces: 16, IPv6 routes (static): 128, Latency: 4 µs, Layer 3 multicast groups: 1000, Virtual interfaces (VLANs): 4000
Country United States
Device Type Internal power supply
Packaged Quantity 1
Performance Switching bandwidth: 112 Gbps
Ports (2nd) Quantity 16
Ports (3rd) Quantity 2
Rack Mounting Kit Included
Included Items
Cables 1 x power cable
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 10.1 lbs
Width 17.3 inch
Depth 13.8 inch
Physical Characteristics
Color Category White
Certifications & Listings
Compliant Standards ANATEL, AS/NZ 3548 Class A, AS/NZS 3548, AS/NZS 60950, BSMI, CCC, CSA C22.2 No. 60950-1-07 Second Edition, CU, EAC, EN 50581, EN 55024:2010, EN 60825-1, EN 60825-2, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-4-8, EN55022, FCC CFR47 Part 15 B Class A, GS, ICES-003:2012 Class A, IEC 60950-1, KCC, NOM, NOM-019-SCFI, RoHS, UL, UL 60950-1:2007 Second Edition, UL-AR, VCCI Class A, WEEE
