Switches

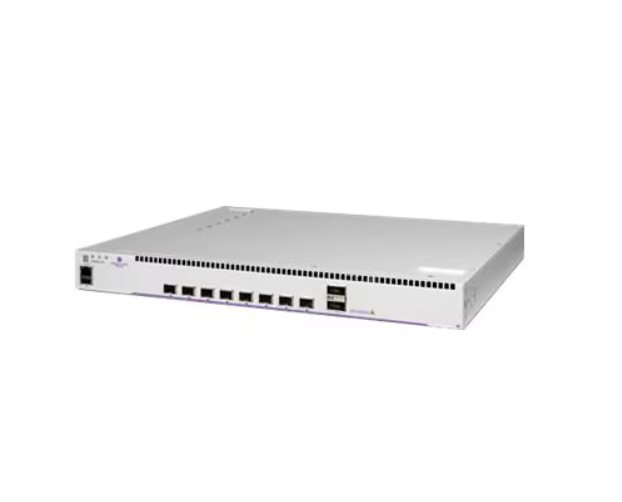

Alcatel-Lucent OmniSwitch 6560-X10 – switch – 10 ports – managed – rack-mountable
Quick tech specs
- X10
- L3
- 8 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 20 Gigabit (stacking)
- Switch
- managed
- rack-mountable
AED32,699.00
Know your gear
Offering a design optimized for flexibility and scalability as well as low power consumption, the OmniSwitch 6560 is an outstanding edge solution. It delivers highly available, secure, self-protective, easily managed and eco-friendly networks.
| Category | Specification |
|---|
| Overview |
| Brand | Alcatel-Lucent |
| Product Line | Alcatel-Lucent OmniSwitch |
| Model | 6560-X10 |
| Manufacturer | Alcatel Internetworking |
| Memory |
| Flash Memory Installed | 2 GB |
| RAM Installed | 1 GB |
| Network & Communication |
| Advanced Switching | Layer 3 |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Features | 2 fans, Access Control List (ACL) support, Auto-uplink (auto MDI/MDI-X), Deficit Round Robin (DRR), DHCP relay, Dynamic ARP protection, Ethernet Ring Protection Switching (ERPS), Host Integrity Check (HIC), In-Service Software Upgrade (ISSU), IPv6 support, LACP support, MAC and IP-based ACLs support, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Network Timing Protocol (NTP), OpenFlow support, Per-VLAN Spanning Tree (PVST), Port Security, Quality of Service (QoS), sFlow v5, Strict Priority Queuing (SPQ), Syslog support, Time Domain Reflectometry (TDR), UDP shaping, Uni-Directional Link Detection (UDLD), Virtual Chassis technology, Virtual Routing and Forwarding (VRF), VoIP support, Weighted Round Robin (WRR) queuing |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 16K entries |
| Manageable | Yes |
| Ports | 10 |
| Product Type | Switch |
| Remote Management | CLI, HTTP, RMON, SCP, SFTP, SNMP, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, Telnet, TFTP |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, MLD, RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing, VRRP |
| Stackable | Stackable |
| Status Indicators | Link/activity, Power, System |
| Subcategory | Network hubs and switches |
| Switching Type | 10 Gigabit Ethernet |
| Connectivity |
| Interface Provided | 1 x console, 1 x USB, 2 x 20Gbit LAN QSFP+, 8 x 1/10Gbit LAN SFP+ |
| Port Quantity | 8 |
| Port Type | 1 Gigabit / 10 Gigabit SFP+ |
| Ports Type (2nd) | 20 Gigabit (stacking) |
| Power |
| Power Consumption Operational | 49 watt |
| Power Supplies Installed | 1 |
| Technical Information |
| Encryption | MD5, PKI |
| Max Operating Temperature | 113 degree Fahrenheit |
| Max Storage Temperature | 185 degree Fahrenheit |
| Min Operating Temperature | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| MTBF | 885000 hour(s) |
| Operating Humidity | 5 – 95% (non-condensing) |
| Product Information |
| Authentication Method | LDAP, RADIUS, Secure Shell (SSH), TACACS+ |
| Country | United States |
| Device Type | Internal power supply |
| Packaged Quantity | 1 |
| Performance | Forwarding rate with stacking: 80 Gbps, Switching capacity (full duplex): 240 Gbps |
| Ports (2nd) Quantity | 2 |
| Rack Mounting Kit | Included |
| Included Items |
| Cables | 1 x power cable |
| Dimensions & Weight |
| Height | 1.7 inch |
| Height (Rack Units) | 1 |
| Weight | 8.91 lbs |
| Width | 17.3 inch |
| Depth | 13.8 inch |
| Physical Characteristics |
| Color Category | White |
| Certifications & Listings |
| Compliant Standards | ANATEL, AS/NZ 3548 Class A, AS/NZS 3548, AS/NZS 60950, BSMI, CCC, CSA C22.2 No. 60950-1-07 Second Edition, CU, EAC, EN 50581, EN 55024:2010, EN 60825-1, EN 60825-2, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-4-8, EN55022, FCC CFR47 Part 15 B Class A, GS, ICES-003:2012 Class A, IEC 60950-1, KCC, NOM, NOM-019-SCFI, RoHS, UL, UL 60950-1:2007 Second Edition, UL-AR, VCCI Class A, WEEE |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
