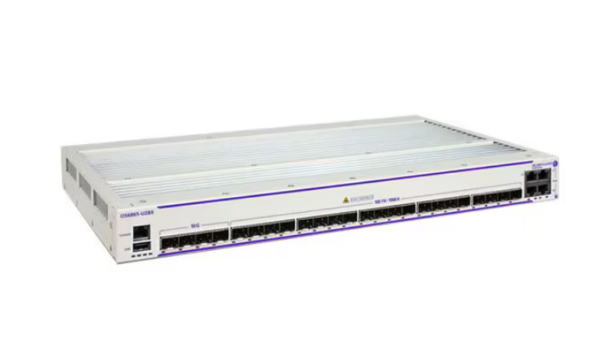

Alcatel-Lucent OmniSwitch 6865-U28X – switch – 28 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • L3
  • 20 x Gigabit SFP + 4 x 10 Gigabit SFP+ + 4 x 10/100/1000 (PoE+) + 2 x 20 Gigabit (stacking)
  • High PoE / PoE+ (280 W)
  • managed
  • rack-mountable

AED79,899.00

Add to Wishlist

Know your gear

Experience superior performance with the Alcatel-Lucent OmniSwitch 6865 Ethernet Switch. This Hardened Ethernet LAN Switches offers an ideal solution for mission-critical applications that need to operate at extreme temperatures and meet stringent EMC/EMI requirements. A high-performance rugged switch that can be stacked to form a virtual chassis, it is designed to be deployed in transportation and traffic control systems, power utilities, video surveillance and other outdoor installations. Features such as SPB support and intelligent auto-provisioning ensure a fast, scalable and cost-efficient way of rolling out services at the edge.

  • Advanced industrial PoE capabilities with support for HPoE for seamless connectivity
  • IEEE 1588v2 PTP capabilities for precise, sub-microsecond timing requirements
SKU: OS6865-U28X-US Category: Tag:
Category Attribute Details
Overview Brand Alcatel-Lucent
Product Line Alcatel-Lucent OmniSwitch
Model 6865-U28X
Manufacturer Alcatel Internetworking
Memory Flash Memory Installed 2 GB
RAM Installed 2 GB
Network & Communication Advanced Switching Layer 3
Compliant Standards IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1ak, IEEE 802.1aq, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3x, IEEE 802.3z
Features Access Control List (ACL) support, Anti-spoofing protection, ARP support, Bidirectional Forwarding Detection (BFD), Bridge protocol data unit (BPDU), Class of Service (CoS), DHCP relay, DHCP server, DHCP snooping, DHCP support, DiffServ support, Digital Diagnostics Monitoring (DDM), Energy Efficient Ethernet, Fanless, Flow control, IGMP snooping, Intermediate System to Intermediate System (IS-IS), Internet Control Message Protocol (ICMP), IPv4 support, IPv6 support, Link Aggregation Control Protocol (LACP), LLDP support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Network Timing Protocol (NTP), Open Shortest Path First (OSPF), OpenFlow support, Per-VLAN Spanning Tree Plus (PVST+), Port mirroring, Precision Time Protocol (PTP), Private VLAN, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Rugged, sFlow, Shortest Path Bridging (SPB), Spanning Tree Protocol (STP) support, Static routing, STP loop guard, STP Root Guard, Tagged VLAN, Time Domain Reflectometry (TDR), Traffic shaping, Tunneling, Uni-Directional Link Detection (UDLD), Virtual Chassis technology, Virtual Route Redundancy Protocol (VRRP) support, VLAN Double Tagging (Q-in-Q), VLAN support, VPN support
Form Factor Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 48K entries
Manageable Yes
PoE Budget 280 watt
Ports 28
Power Over Ethernet (PoE) High PoE / PoE+
Product Type Switch
Remote Management CLI, HTTP, HTTPS, RMON, SNMP 1, SNMP 2, SNMP 3, TFTP
Routing Protocol BGP, GRE, IGMP, IGMPv2, IGMPv3, OSPF, RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing, VRRPv2, VRRPv3
Status Indicators PoE, Port status, Power, System
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots QSFP Slots 10/100/1000 (PoE+)
Connectivity Interface Provided 1 x console RJ-45, 1 x USB Type A, 2 x 20Gbit LAN stacking, 20 x 1000Base-X SFP, 4 x 10GBase-X SFP+, 4 x Gigabit LAN RJ-45 HPoE – 75 W
Port Quantity 20
Port Type Gigabit SFP
Ports Type (2nd) 10 Gigabit SFP+
Power Hot-Plug Hot-plug
Power Consumption Operational 75.9 watt
Power Supplies Installed 1
Power Supplies Supported 2
Redundant Power Supply Optional
Redundant Power Supply Supported 1+1 (with optional power supply)
Software Software Type AOS Access Guardian Framework
Technical Information Encryption MD5, PKI
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 165.2 degree Fahrenheit
Max Storage Temperature 176 degree Fahrenheit
Min Operating Temperature -40 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Operating Humidity 5 – 95% (non-condensing)
Product Information Authentication Method LDAP, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Capacity IPv4 routes: 64000, Virtual interfaces (VLANs): 4000
Country United States
Device Type Internal power supply
Packaged Quantity 1
Performance Switching capacity: 208 Gbps, Switching fabric bandwidth: 224 Gbps
Ports (2nd) Quantity 4
Ports (3rd) Quantity 4
Ports (4th) Quantity 2
Ports (4th) Type 20 Gigabit (stacking)
Rack Mounting Kit Optional
Dimensions & Weight Height 1.7 inch
Height (Rack Units) 2
Weight 13.84 lbs
Width 17.3 inch
Depth 10.6 inch
Physical Characteristics Color Category Gray
Certifications & Listings Compliant Standards ANATEL, AS/NZS 3548 Class A, BSMI, CAN/CSA C22.2 No. 60950-1-03, CCC, CDRH, C-Tick, EAC, EN 50121-4, EN 50581, EN 60825-1, EN 60825-2, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-12, EN 61000-4-16, EN 61000-4-2, EN 61000-4-29, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-4, EN55022, EN55024, FCC CFR47 Part 15 B, GS, ICES-003 issue 5 Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-30, IEC 60945, IEC 60950-1, IEC 61850-3, IEEE 1613, IP30, KCC, NEMA TS-2, NOM-019-SCFI, Plug and Play, RoHS, UL 1604, UL 508, UL 60950-1 Second Edition, UL-AR, VCCI, WEEE
