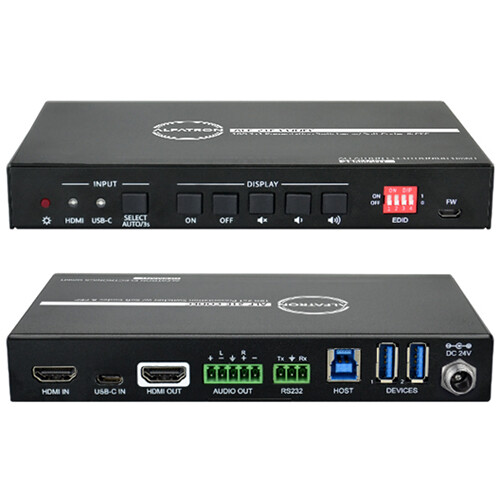

Alfatron 21E-SOFTCODEC 2×1 Presentation Switcher with CEC

Add to Wishlist
  • Auto Presentation Switcher with CEC
  • Front-Panel Buttons and RS-232 Control
  • HDMI 2.0 and USB Type-C Inputs
  • Supports up to 4K x 2K60 Video in 4:4:4
  • USB 3.0/2.0 Data Ports

AED3,499.00

Add to Wishlist

Designed to switch between an HDMI 2.0 and a USB Type-C input to one HDMI output, the 21E-SOFTCODEC 2×1 Presentation Switcher with CEC from Alfatron supports video resolutions up to 4K x 2K60 in a 4:4:4 color space. The CEC feature enables the device to be controlled by the front-panel buttons or RS-232 CEC commands.

The unit also has two USB type-A data ports for devices such as cameras, microphones, or keyboards, and a USB type-B port for host connectivity. The 21E automatically switches to the first detected source device when set to Auto and to the lowest numbered input when the active source is removed. Stereo and multichannel audio are supported on the HDMI input, which gets embedded in the HDMI output stream while being simultaneously de-embedded to a balanced analog audio output.

Key Features
  • Controllable via front-panel buttons and RS-232
  • Supports automatic switching
  • Provides charging on USB Type-C port up to 40W
  • Provides USB data (USB 3.0/2.0)
  • Audio de-embedding to balanced analog out
  • Peripheral units (i.e. microphone, keyboard, and camera) can be connected by type-A USB (USB 3.0 / 2.0) ports and automatically switched along with HDMI and USB Type-C input as USB devices for the corresponding host
  • Smart EDID management for various applications and customized settings
  • Front-panel buttons trigger both CEC and RS232 commands for display control
SKU: ALF-21E-CODEC Category: Tag:
Processing
Switching Type
Pushbutton, Software
Processing Resolution
UHD 4K at 60
Color Processing
8-Bit 4:4:4
Input
Video Inputs
1x HDMI (2.0) Female
1x USB-C Female
Input Video Format
HDMI (8-Bit 4:4:4)
UHD 4K up to 60 fps
USB-C (4:4:4)
UHD 4K up to 30 fps
Input Audio Format
LPCM (Linear Pulse-Code Modulation)
Embedded Audio Input
HDMI
Output
Video Outputs
1x HDMI (2.0) Female
Output Video Format
HDMI
UHD 4K up to 60 fps
Audio Outputs
1x Block 5-Pin Stereo Analog Female
Output Audio Format
Analog
Embedded Audio Output
HDMI
Connectivity
Other I/O
1x USB-B Input/Output
2x USB-A Input/Output
1x Block 3-Pin RS-232 Input
HDCP Support
Yes
HDR Support
Yes, HDR10
DTS Compatibility
DTS-HD Master Audio, DTS:X
Hardware
Wi-Fi
Yes
Bluetooth
Yes
Power
Power I/O
1x Barrel (24 VDC at 2.7 A) Input
Power Consumption
Device: 54 W
Environmental
Operating Temperature
22 to 87°F / -10 to 55°C
Storage Temperature
-13 to 158°F / -25 to 70°C
Operating Humidity
10 to 90%
General
Dimensions
6.6 x 3.7 x 1″ / 168 x 95 x 24.5 mm
Weight
8.6 oz / 245 g
