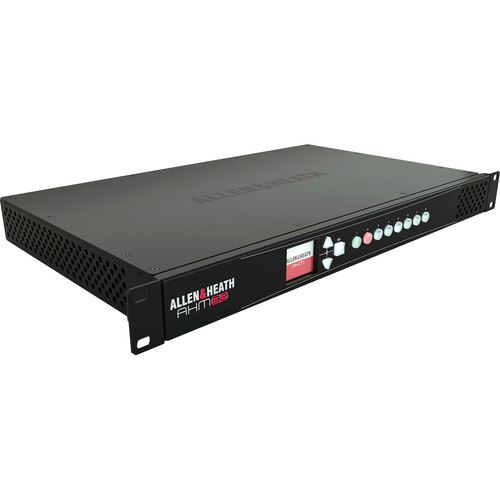

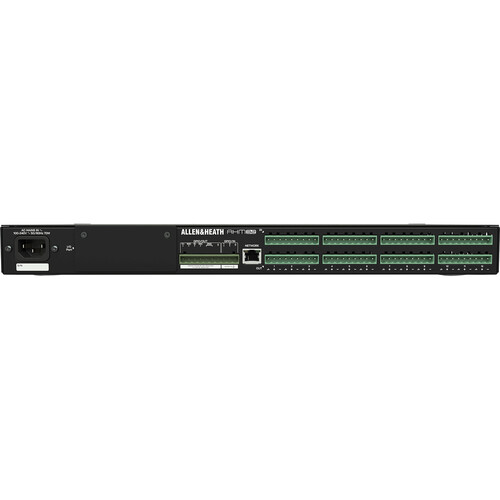

Audio installers in search of an audio matrix processor for sound management and installation should look no further than the Allen & Heath AHM-32, an audio distribution, paging, conferencing, and speaker processing device, well suited for corporate, hospitality, education, event, and multipurpose venues, and retail, theaters, cruise ships, and sports venues.
The AHM-32 works with an expanded ecosystem of remote audio expanders, remote controllers, interfaces, apps, and software. Utilize the family of portable, rackmountable or wallmountable audio expanders available, with a choice of proprietary point-to-point Layer-2 or Dante transport protocols. AHM works with a wide range of IP remote controllers for volume control, music source selection, preset recall, and more. You can also integrate with several 3rd-party devices over GPI/O, TCP/IP, or industry-standard control systems.
- 32×32 processing matrix
- 12×12 local analog I/O
- I/O Port for audio networking, up to 128×128
- Dante 96 kHz option card (AES67 and DDM ready)
- SLink 128×128 option card for audio expansion
- 32 configurable processing outputs—mono/stereo zones or speaker processing
- 96 kHz FPGA core with ultralow latency
- Front-panel screen and navigation
- 8 SoftKeys
- Compatible with IP1, IP6, IP8 remote controllers
- 2×2 local GPIO plus networkable GPIO interface
- TCP/IP protocol for third party integration
- Crestron, AMX, and Extron drivers
- Mac / Windows System Manager software
- Custom Control app and editor for BYOD
- 16 user profiles
- Integrated stereo playback
- Event scheduler
- Automatic mic mixer
- AEC (acoustic echo cancellation with optional module)
- ANC (ambient noise compensation)
- Priority ducking
- 8-band PEQ, dynamics, and delay on every input and zone
- Speaker processing with crossover filter, delay, limiter, and PEQ
