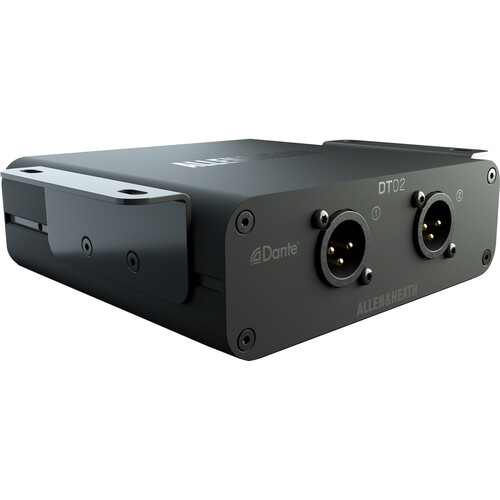

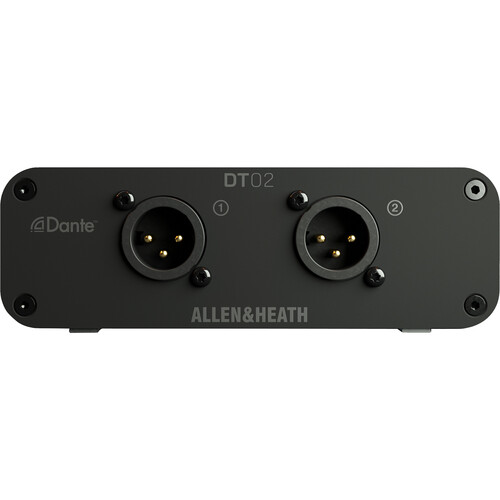

Allen & Heath DT02-M Dante Output Interface with No Power Supply


Key Features
  • 48 kHz / 96 kHz
  • Two XLR Outputs
  • PoE Powered or 12 VDC
  • Power Supply Not Included
  • EtherCon Connector
  • Rugged Aluminum Enclosure
  • AES67 Compatible
  • Dante Domain Manager Ready
  • Includes Power Supply and Rubber Feet

د.إ1,699.00

Allen & Heath DT02Ā Overview

Audio professionals in need of a portable and rugged Dante output interface will appreciate theĀ Allen & Heath DT02-M, a cost-effective, compact 48/96 kHz Dante interface enabling two XLR outputs, ideal for a variety of fixed installation and AV / hire / portable applications. The unit is designed to be used with any Dante-equipped Allen & Heath mixer or AHM system as well as with third-party Dante systems. The DT-02-M can be powered with a 12 VDC power supply (not included) or via PoE.

The DT02-M is housed in a compact, rugged aluminum enclosure with rubber feet, allowing it to be easily installed wherever it’s needed, such as in the vicinity of powered speakers or monitors or placed in an equipment rack. Should you wish to rackmount the unit, separately sold rack ears and a rackmount kit are available.

  • Dante output interface, 48/96 kHz
  • Two XLR line outputs
  • PoE powered or 12 VDC power supply (not included)
  • EtherCon connector
  • Rugged aluminum box
  • Optional ears for surface mounting DT-SMK
  • Optional rack-mounting kit DT-RK19
  • AES67 compatible
  • Dante Domain Manager ready
SKU: AH-DT-02-M Category: Tag:
XLR Outputs
XLR Outputs: Balanced, Relay Protected
Output Impedance: <75 Ohms
Nominal Output: +4 dBu = 0 dB Meter Reading
Maximum Output Level: +22 dBu
Dante
48/96 kHz
Operating Temperature
32 to 104Ā°F / 0 to 40Ā°C
Power
PoE: Power over Ethernet
PoE Requirements: 802.3af 15 W
DC Input: +12 VDC, 1.25 A
Power Consumption: 10 W Maximum
Note: Power Supply Not Included
Dimensions (W x D x H)
5.1 x 5.2 x 1.7″ / 13 x 13.2 x 4.3 cm
Weight
1 lb / 0.5 kg
