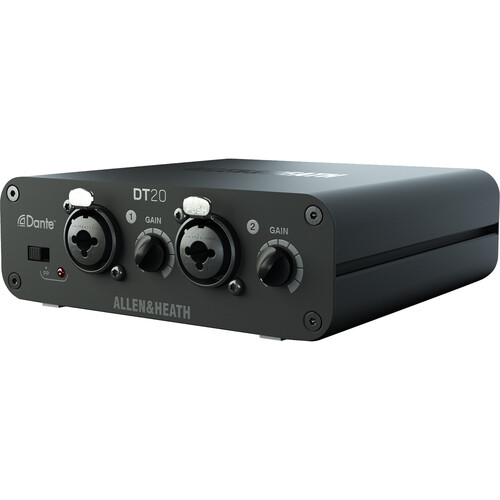

Allen & Heath DT20-X Dante Input Interface with Power Supply

Add to Wishlist
Key Features
  • 48 kHz / 96 kHz
  • Two Combo XLR-1/4″ Mic/Line Inputs
  • Local Gain Control
  • 48V Phantom Power with LED Indicator
  • PoE Powered or 12 VDC Power Supply
  • EtherCon Connector
  • Rugged Aluminum Enclosure
  • AES67 Compatible
  • Dante Domain Manager Ready
  • Includes Power Supply and Rubber Feet
    Key Features
    • 48 kHz / 96 kHz
    • Two Combo XLR-1/4″ Mic/Line Inputs
    • Local Gain Control
    • 48V Phantom Power with LED Indicator
    • PoE Powered or 12 VDC Power Supply
    • EtherCon Connector
    • Rugged Aluminum Enclosure
    • AES67 Compatible
    • Dante Domain Manager Ready
    • Includes Power Supply and Rubber Feet
      Key Features
      • 48 kHz / 96 kHz
      • Two Combo XLR-1/4″ Mic/Line Inputs
      • Local Gain Control
      • 48V Phantom Power with LED Indicator
      • PoE Powered or 12 VDC Power Supply
      • EtherCon Connector
      • Rugged Aluminum Enclosure
      • AES67 Compatible
      • Dante Domain Manager Ready
      • Includes Power Supply and Rubber Feet

د.إ1,699.00

Add to Wishlist

Allen & Heath DT20 Overview

Audio professionals in need of a portable and rugged Dante input interface will appreciate the Allen & Heath DT20-X, a cost-effective, compact 48/96 kHz Dante interface enabling two combo XLR-1/4″ mic/line inputs with 48V phantom power, ideal for a variety of fixed installation and AV / hire / portable applications. The DT20-X is designed to be used with any Dante-equipped Allen & Heath mixer or AHM system as well as with third-party Dante systems.

The DT20-X is housed in a compact, rugged aluminum enclosure and includes a 12 VDC power supply and rubber feet. The unit can be easily mounted under a table, podium, etc. for local mic connections. Should you wish to rackmount the DT20-X, separately sold rack ears and a rack-mount kit are available.

  • Dante output interface, 48/96 kHz
  • Two combo mic/line inputs
  • Local gain control
  • 48V phantom power with LED indicator
  • PoE powered or 12 VDC power supply (included)
  • EtherCon connector
  • Rugged aluminum box
  • Optional ears for surface mounting DT-SMK
  • Optional rack-mounting kit DT-RK19
  • AES67 compatible
  • Dante Domain Manager ready
SKU: AH-DT-20-X Category: Tag:
Mic/Line Inputs
Mic Inputs: Balanced XLR, +48 V Phantom
Analog Gain: 0 to +55 dB
Line Inputs: Balanced TRS, -20 dB Pad
Maximum Input Level: +30 dBu (TRS In)
Input Impedance: >4 Kilohms (XLR), >10 Kilohms (TRS)
Dante
48/96 kHz
Operating Temperature
32 to 104°F / 0 to 40°C
Power
PoE: Power over Ethernet
PoE Requirements: 802.3af 15 W
DC Input: +12 VDC, 1.25 A
Power Consumption: 10 W Maximum
Dimensions (W x D x H)
5.1 x 5.4 x 1.7″ / 13 x 13.7 x 4.3 cm
Weight
1 lb / 0.5 kg
Packaging Info
Package Weight
2.235 lb
Box Dimensions (LxWxH)
7.6 x 7.4 x 6.5″
