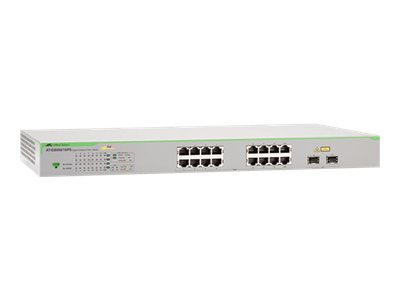

Allied Telesis AT GS950/16PS – switch – 16 ports – managed – rack-mountable AT-GS950/16PS-10

Availability:

10 in stock
Add to Wishlist

2,799.00 د.إ

10 in stock

Add to Wishlist

ALLIED TELESIS 16-Port Managed Switch



Overview

The Allied Telesis AT-GS950/16PS Gigabit Ethernet WebSmart switch features sixteen 10/100/1000T ports and two SFP combo ports, delivering up to 30 watts per port (PoE+) to support video surveillance and security cameras, wireless access points, IP phones and other PoE powered devices. The PoE option eliminates the need for power rewiring and minimizes the clutter of power supplies and adapters in awkward places. Thanks to its compact size, the AT-GS950/16PS is ideal for the edge of SMB businesses, classrooms, cafes and Point of Sale (POS) applications.

  • Power over Ethernet Plus (PoE+)
  • 2 SFP combo ports
  • Double the MAC table size of other WebSmart switches in the market
  • Web-based management
  • 802.1x security
  • Link aggregation
  • Port setting
  • Port mirroring
  • IGMP snooping (v1/v2)
  • Static multicast group
  • Desktop or rack/wall mountable
  • Low power consumption
SKU: AT-GS950/16PS-10 Category: Tags: , ,

Specifications

General
Device Type Switch – 16 ports – managed
Enclosure Type Desktop, rack-mountable, wall-mountable
Subtype Gigabit Ethernet
Ports 16 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP (PoE+)
Power Over Ethernet (PoE) PoE+
PoE Budget 185 W
Performance Switching capacity: 32 Gbps Throughput: 23.8 Mpps
Capacity ACL entries: 240 Virtual interfaces (VLANs): 256
MAC Address Table Size 8K entries
Jumbo Frame Support 10KB
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP
Encryption Algorithm MD5
Authentication Method RADIUS
Features Flow control, trunking, VLAN support, IGMP snooping, Syslog support, port mirroring, MAC address filtering, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), RADIUS support, LLDP support, Link Aggregation Control Protocol (LACP), DHCP client
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at
RAM 64 MB
Flash Memory 16 MB
Status Indicators Port status, system, PoE
Expansion / Connectivity
Interfaces 6 x 1000Base-T RJ-45 PoE+ 10 x 1000Base-T RJ-45 PoE 2 x SFP (mini-GBIC)
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 21.8 Watt
Miscellaneous
Mounting Kit Included
Rack Mounting Kit Included
MTBF 263,000 hours
Compliant Standards FCC Class A certified, CSA, TUV, C-Tick, CISPR 22 Class A, cUL, EN 60950, EN55024, EN55022 Class A, RoHS, UL 60950-1 Second Edition, WEEE, VCCI Class A
Localization United States
Dimensions & Weight
Width 16.9 in
Depth 9.8 in
Height 1.7 in
Weight 7.85 lbs
Manufacturer Warranty
Service & Support Limited warranty – lifetime
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 90% (non-condensing)
Min Storage Temperature -13 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 – 95% (non-condensing)
General
Authentication Method RADIUS
Capacity ACL entries: 240 ¦ Virtual interfaces (VLANs): 256
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at
Device Type Switch – 16 ports – managed
Enclosure Type Desktop, rack-mountable, wall-mountable
Encryption Algorithm MD5
Features Flow control, trunking, VLAN support, IGMP snooping, Syslog support, port mirroring, MAC address filtering, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), RADIUS support, LLDP support, Link Aggregation Control Protocol (LACP), DHCP client
Flash Memory 16 MB
Jumbo Frame Support 10KB
MAC Address Table Size 8K entries
Performance Switching capacity: 32 Gbps ¦ Throughput: 23.8 Mpps
PoE Budget 185 W
Ports 16 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP (PoE+)
Power Over Ethernet (PoE) PoE+
RAM 64 MB
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP
Status Indicators Port status, system, PoE
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 9.8 in
Height 1.7 in
Weight 7.85 lbs
Width 16.9 in
Environmental Parameters
Humidity Range Operating 5 – 90% (non-condensing)
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 104 °F
Max Storage Temperature 158 °F
Min Operating Temperature 32 °F
Min Storage Temperature -13 °F
Expansion / Connectivity
Interfaces 6 x 1000Base-T RJ-45 PoE+ ¦ 10 x 1000Base-T RJ-45 PoE ¦ 2 x SFP (mini-GBIC)
Manufacturer Warranty
Service & Support Limited warranty – lifetime
Miscellaneous
Compliant Standards FCC Class A certified, CSA, TUV, C-Tick, CISPR 22 Class A, cUL, EN 60950, EN55024, EN55022 Class A, RoHS, UL 60950-1 Second Edition, WEEE, VCCI Class A
Localization United States
MTBF 263,000 hours
Mounting Kit Included
Rack Mounting Kit Included
Power
Power Consumption Operational 21.8 Watt
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
