Networking

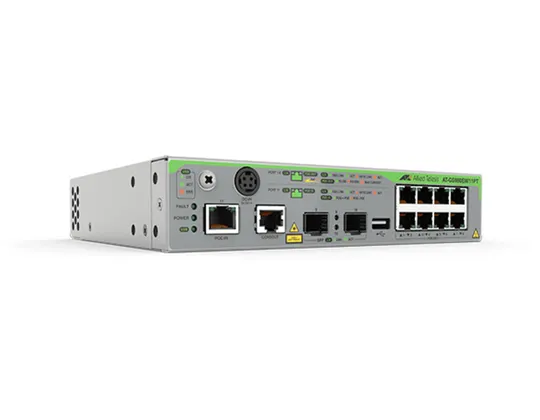

Allied Telesis AT-GS980EM/11PT-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
L3 Gigabit Switch, 8-port 10/100/1000T PoE+, 2-port 100/1000X SFP, 1-port AC-Input, 1-port PoE-in (supporting PD and PoE pass-through)
7,899.00 د.إ
Highlights
Gigabit Layer 3 Lite PoE++/PoE Pass-through Switches The Allied Telesis GS980EM Series of Gigabit Layer 3 Lite PoE++/PoE pass-through switches offer an impressive set of features in a compact design. Ideal for deployment at the network edge, the GS980EM Series feature flexible Power over Ethernet capabilities to support IoT device connectivity in today’s converged business environments. Overview Allied Telesis GS980EM Series are secure and reliable, offering 8 x Gigabit PoE enabled ports and 2 x SFP uplinks, and providing a high value solution for flexible PoE at the network edge. The GS980EM/10H can provide up to 90 Watts (PoE++) on all ports. This enables powering high power devices such as high resolution PTZ cameras with heater/blowers for outdoor applications, enhanced infrared lighting and lighting controllers, and more. The GS980EM/10H requires a PWR300 external power supply to operate and provide PoE power. Up to three PWR300 PSUs can be used to increase the available PoE power. The GS980EM/11PT can supply up to 30 Watts (PoE+) to connected devices. It can be powered by an AC power adapter, or by PoE(1). When deployed together, the GS980EM/11PT can be powered by the GS980EM/10H, while PoE pass-through enables power from the GS980EM/10H to pass through the GS980EM/11PT to power connected end points.
| Feature | Details |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| System event log | Y |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | N |
| Port mirroring | Y |
| Full duplex | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Spanning tree protocol | Y |
| Auto-negotiation | Y |
| VLAN support | Y |
| Virtual LAN features | Private VLAN, Voice VLAN |
| Number of VLANs | 4094 |
| MAC address table | 16000 entries |
| Switching capacity | 24 Gbit/s |
| Forwarding rate | 16.4 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Y |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Y |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, PEAP, SHA-1, SHA-2, SHA-256, SSH, SSL/TLS, TLS, TTLS |
| BPDU filtering/protection | Y |
| Authentication | MAC-based authentication, Web-based authentication |
| Multicast support | Y |
| GARP VLAN Registration Protocol (GVRP) | Y |
| Routing protocols | OSPF, RIP, RIP-2 |
| Rack mounting | Y |
| Stackable | N |
| Form factor | 1U |
| Product color | Grey |
| LED indicators | Y |
| Electromagnetic compatibility | EN55032 A, FCC A, VCCI A, ICES-003 A |
| Certification | EN55024, EN61000-3 UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL RoHS |
| Memory type | DDR3-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Harmonized System (HS) code | 8517.62.0050 |
| Export Control Classification Number (ECCN) | 5A992C |
| Power supply included | Y |
| Power consumption (max) | 98 W |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) pass through | Y |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 3000 m |
| Heat dissipation | 75 BTU/h |
| Width | 210 mm |
| Depth | 180 mm |
| Height | 42.5 mm |
| Weight | 1.6 kg |
| Package width | 417 mm |
| Package depth | 336 mm |
| Package height | 151 mm |
| Package weight | 3.5 kg |
