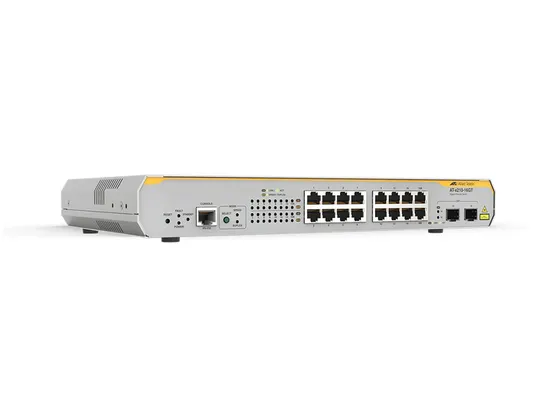

Allied Telesis AT-X210-16GT-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Grey


L2+ switch with 14 x 10/100/1000TX ports and 2 100/1000TX / SFP combo ports (16 ports total)

2,599.00 د.إ

Highlights

Gigabit Edge Switch The Allied Telesis x210-16GT features 14 x 10/100/1000T ports and 2 x Gigabit-SFP combo uplink ports for network access applications and provides an impressive set of features in an affordable package. The compact footprint, reduced heat dissipation and silent operation of the x210-16GT makes it ideal for desktop applications or anywhere space is limited.

SKU: AT-X210-16GT-30 Category: Tag:
Feature Specification
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Y
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity 2
Power connector DC-in jack
Networking standards IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support N
Ethernet Ring Protection Switching (ERPS) Y
Number of VLANs 256
MAC address table 16000 entries
Switching capacity 12.8 Gbit/s
Throughput 6.5 Mpps
Jumbo frames support Y
Packet buffer memory 512 MB
Access Control List (ACL) Y
Multicast support Y
Rack mounting Y
Product colour Grey
LED indicators Y
Safety UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
Memory type DDR-SDRAM
Internal memory 128 MB
Flash memory 64 MB
AC input voltage 90 – 260 V
AC input frequency 47/63 Hz
Power consumption (typical) 24 W
Power over Ethernet (PoE) N
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -25 – 70 °C
Operating relative humidity (H-H) 5 – 90%
Storage relative humidity (H-H) 5 – 95%
Operating altitude 0 – 3048 m
Heat dissipation 81 BTU/h
Width 340 mm
Depth 215 mm
Height 44 mm
Weight 2.4 kg
