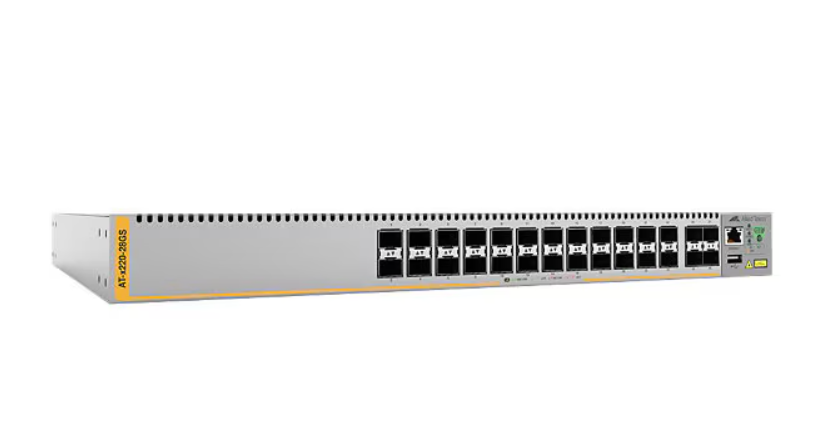

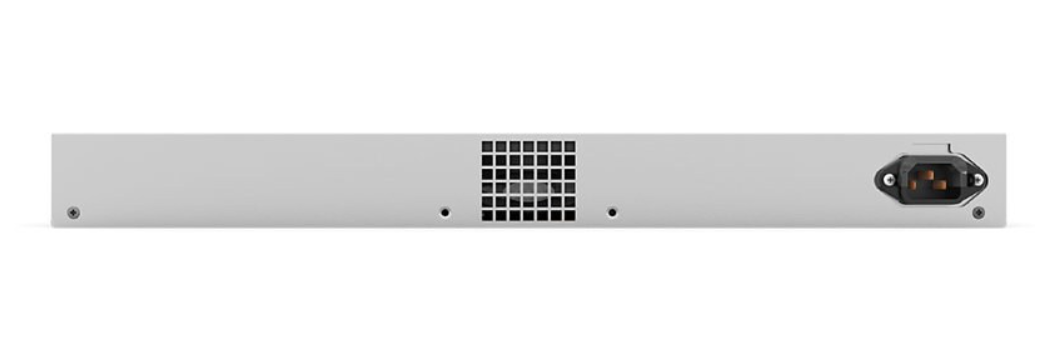

Allied Telesis AT x220-28GS – switch – 28 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 28GS
  • L3
  • 24 x Gigabit SFP + 4 x Gigabit SFP (uplink)
  • Switch
  • managed
  • rack-mountable

20,599.00 د.إ

Add to Wishlist

Know your gear

The Allied Telesis x220-28GS is a fully managed high-performing Gigabit Layer 3 switch. The combination of 24 x 100/1000X SFP slots and 4 x 100/1000X SFP uplinks make it ideal for sensitive data transfer and long-distance fiber connectivity at the edge of the network.
SKU: AT-X220-28GS-10 Category: Tag:
Category Specification
Overview
Brand Allied Telesis
Product Line Allied Telesis AT
Model x220-28GS
Manufacturer Allied Telesis
Memory
Flash Memory Installed 128 megabyte
Memory Technology DDR SDRAM
RAM Installed 512 megabyte
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, X.509
Features 1.5MB packet buffer, 802.1x authentication, Access Control List (ACL) support, Active Fiber Monitoring, Administrator’s password, Allied Telesis Management Framework (AMF), ARP support, Authentication, Authorization and Accounting (AAA), Bridge protocol data unit (BPDU), Built-In Self Test (BIST), Control Plane Prioritization (CPP), DHCP snooping, DHCP support, DiffServ support, Digital Diagnostics Monitoring (DDM), Ethernet Protection Switched Ring (EPSRing), Flow control, Full duplex mode, Internet Control Message Protocol (ICMP), IPv6 support, LLDP support, Loop prevention, Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), Network Access Control (NAC), OCSP support, Per-VLAN Spanning Tree Plus (PVST+), Quality of Service (QoS), Rapid Reconfiguration of Spanning Tree (RSTP), Remote Switch Port Analyzer (RSPAN), Secure Copy (SCP), sFlow, Spanning Tree Protocol (STP) support, Storm protection, STP Root Guard
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 10KB
MAC Address Table Size 16000 entries
Manageable Yes
Ports 28
Product Type Switch
Remote Management HTTP, HTTPS, NTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SNMP 6, SSH, SSH 6, SSH-2, Telnet, TFTP
Routing Protocol CIDR, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, RIP, RIP-2, RIPng, Static IP routing
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 1 x console RJ-45, 24 x 1000Base-X SFP, 4 x 1000Base-X SFP uplink
Port Quantity 24
Port Type Gigabit SFP
Ports Type (2nd) Gigabit SFP (uplink)
Power
Frequency 50 – 60 hertz
Power Consumption Operational 75 watt
Technical Information
Encryption AES, CCM, CMAC, CRL, DES, DRBG, DSA, ECDSA, GCM, MD5, PEAP, RNG, RSA, SHA-1, SHA-2, SSL, SSL 2.0, SSL 3.0, TLS 1.2, Triple DES, TTLS, XTS
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 122 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -13 degree Fahrenheit
Operating Humidity 5 – 90% (non-condensing)
Product Information
Authentication Method Extensible Authentication Protocol (EAP), RADIUS, Secure Shell (SSH), TACACS+
Capacity Configurable VLANs: 4094, Priority queues: 8
Country United States
Device Type Internal power supply
Packaged Quantity 1
Performance Forwarding rate: 41.7 Mpps, Switching fabric speed: 56 Gbps
Ports (2nd) Quantity 4
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 9.48 lbs
Width 17.3 inch
Depth 12.8 inch
Physical Characteristics
Color Category Gray
Certifications & Listings
Compliant Standards AS/NZS 60950-1, CAN/CSA C22.2 No. 60950-1-03, China RoHS, cUL, EN 55022 Class A, EN 60825-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55024, EU RoHS, FCC Class A certified, UL, UL 60950-1, VCCI Class A
ENERGY STAR Certified No
