Networking

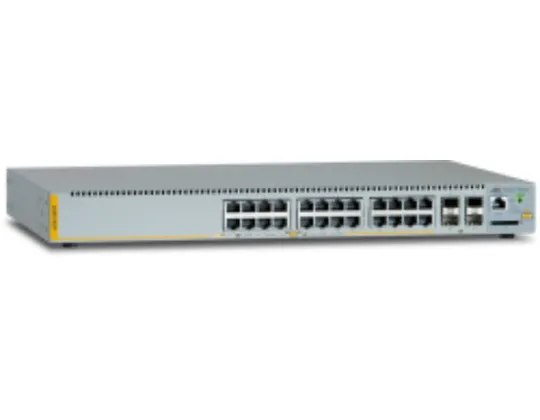

Allied Telesis AT-x230-28GP-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
L2+ managed switch, 24 x 10/100/1000Mbps POE+ ports, 4 x SFP uplink slots, 1 Fixed AC power supply
AED7,299.00
Highlights
The Allied Telesis x230-28GP features 24 10/100/1000T PoE+ ports with 4 SFP Gigabit uplink ports. Its full feature-set and Power over Ethernet Plus (PoE+) are ideal for applications at the network edge. The AT-x230-28GP supports today’s converged networks with Gigabit Ethernet to the desktop, while powering VoIP phones, wireless access points, and IP security cameras.
| Feature | Specification |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| ARP inspection | Y |
| System event log | Y |
| MIB support | Y |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Networking standards | IEEE 802.11ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Y |
| Port mirroring | Y |
| Full duplex | Y |
| Policy-based routing | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Spanning tree protocol | Y |
| VLAN support | Y |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Throughput | 41.7 Mpps |
| Packet buffer memory | 1.5 MB |
| DHCP features | DHCP server, DHCPv6 relay, DHCPv6 server, DHCP client |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| Security algorithms | 802.1x RADIUS |
| Multicast support | Y |
| Rack mounting | Y |
| Stackable | Y |
| Product colour | Grey |
| LED indicators | Y |
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Noise level | 42 dB |
| Harmonized System (HS) code | 85176990 |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (max) | 520 W |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 3048 m |
| Heat dissipation | 303 BTU/h |
| Width | 440 mm |
| Depth | 290 mm |
| Height | 44 mm |
| Weight | 4.7 kg |
