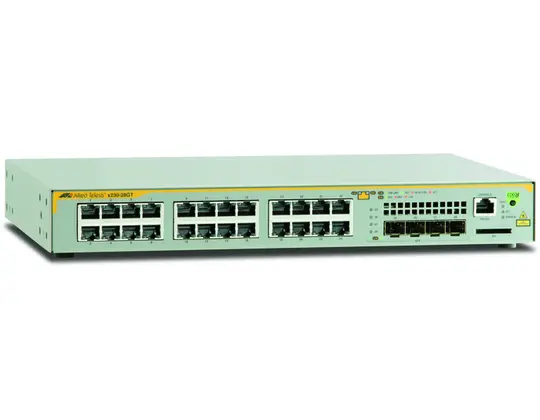

Allied Telesis AT-x230-28GT-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
L2+ managed switch, 24 x 10/100/1000Mbps, 4 x SFP uplink slots, 1 Fixed AC power supply EU Power Cord
AED4,799.00
Highlights
The Allied Telesis x230 Series of Layer 3 Gigabit switches offers an impressive set of features in a compact design, ready for flexible deployment at the network edge. Gigabit to the desktop ensures maximum network performance for demanding applications. The Power over Ethernet (PoE+) models are ideal for connecting and remotely powering access and security devices. PoE+ provides up to 30 Watts to support high power connected edge devices such as multi-band wireless access points and pan-tilt-zoom (PTZ) digital security cameras, supporting the growth of wireless networking and digital video surveillance. The fully featured AlliedWare Plus™ operating system brings a host of powerful features, such as Ethernet Protection Switched Ring (EPSRing™) for high-speed ring connectivity, Allied Telesis Management Framework™ (AMF) for automated management, and eco-friendly Energy Efficient Ethernet (EEE) to reduce running costs. The x230 Series is perfect for network access connectivity. The Allied Telesis x230-28GT features 24 x 10/100/1000T ports with 4 SFP Gigabit uplink ports. A full feature-set makes it ideal for applications at the network edge, supporting Gigabit to the desktop for maximum network performance.
| Parameter | Details |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Traffic classification | Y |
| ARP inspection | Y |
| System event log | Y |
| MIB support | SNMP |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
| Compatible memory cards | SD, SDHC |
| Networking standards | IEEE 802.1Q, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Y |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-FX, 100BASE-T, 1000BASE-LX, 1000BASE-SX |
| Port mirroring | Y |
| Full duplex | Y |
| IP routing | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| Active link detection | Y |
| VLAN support | Y |
| Virtual LAN features | Private VLAN |
| Fiber ethernet cabling technology | 1000BASE-X, 1000BASE‑LX, 1000BASE‑SX, 1000BASE‑ZX |
| Transmission distance (max) | 80 km |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Throughput | 41.7 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Y |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| DHCP features | DHCP client |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| Security algorithms | 802.1x RADIUS, EAP, HTTPS, MD5, PEAP, SNMP, SSH, SSH-2, SSL/TLS |
| MAC address filtering | Y |
| SSH/SSL support | Y |
| Loop protection | Y |
| BPDU filtering/protection | Y |
| Authentication | MAC-based authentication, Port-based authentication |
| Multicast support | Y |
| Management protocols | SNMP |
| Supported network protocols | IPv6, IPv4, DHCP, NTPv6, STP, BDPU, IP, ICMP, ARP, LLDP, SNMP, MSTP, RSTP, RIP, TLS,TTLS,PEAP, MD5, Telnet, GVRP |
| Rack mounting | Y |
| Stackable | Y |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Y |
| Country of origin | China |
| Safety | UL60950-1, CAN/CSA-C22.2 # 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Electromagnetic compatibility | EN55022 A, FCC A, VCCI A |
| Certification | UL, cUL, UL-EU, RoHS |
| Physical stacking (units) | 32 |
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Noise level | 34 dB |
| Harmonized System (HS) code | 85176990 |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Input current | 2.4 A |
| Power consumption (max) | 26 W |
| Power over Ethernet (PoE) | N |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 3048 m |
| Heat dissipation | 89 BTU/h |
| Width | 341 mm |
| Depth | 231 mm |
| Height | 44 mm |
| Weight | 2.4 kg |
