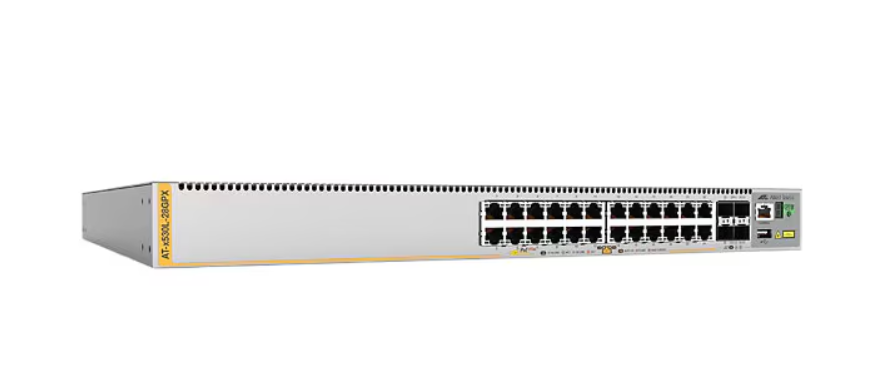

Allied Telesis AT x530L-28GPX – switch – 28 ports – managed – rack-mountable
Quick tech specs
- 28GPX
- L3
- 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
- PoE+ (740 W)
- Switch
- managed
- rack-mountable
AED17,399.00
Know your gear
The Allied Telesis x530L series are a high-performing and feature-rich choice for today’s networks. AMF secure mode increases network security with management traffic encryption, authorization and monitoring. A secure network environment is guaranteed. The x530L series offers powerful control over network traffic types, secure management options, loop guard to protect against cabling mistakes, and tri-authentication for comprehensive access control. The x530L series was designed with reliability in mind, and guarantees continual delivery of essential services.
| Category | Specification |
|---|
| Overview |
| Brand | Allied Telesis |
| Product Line | Allied Telesis AT |
| Model | x530L-28GPX |
| Manufacturer | Allied Telesis |
| Memory |
| Flash Memory Installed | 256 MB |
| Memory Technology | DDR3 SDRAM |
| RAM Installed | 1 GB |
| Network & Communication |
| Advanced Switching | Layer 3 |
| Compliant Standards | ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, ITU-T G.8032, X.509 |
| Features | 802.1x authentication, Active Fiber Monitoring, Allied Telesis Management Framework (AMF), ARP support, Authentication, Authorization and Accounting (AAA), Auto-negotiation, BOOTP support, Bootstrap Router (BSR) Mechanism, BPDU protection, Built-In Self Test (BIST), Cable fault locator (TDR), Connectivity Fault Management (CFM), Control Plane Prioritization (CPP), DHCP client, DHCP relay, DHCP snooping, DiffServ support, Digital Diagnostics Monitoring (DDM), DNS client, DNS relay, DoS attack prevention, Dynamic ARP Inspection (DAI), Energy-Efficient Ethernet (EEE), Ethernet Protection Switched Ring (EPSRing), Ethernet Ring Protection Switching (ERPS), Extensive Access Control List (ACL) support, Generic VLAN Registration Protocol (GVRP), IGMP snooping, IP source guard, IPv6 support, LACP support, LLDP support, LLDP-MED, Logical Link Control, Long-Distance stacking (LD-VCStack), MAC address filtering, Management Information Base (MIB), Network Access Control (NAC), NTP client, NTP server, OCSP support, OpenFlow support, Password protection, Per-VLAN Spanning Tree Plus (PVST+), Point-to-Point Protocol (PPP), Proxy ARP, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Router advertisement guard, sFlow, Software Defined Networking (SDN), Storm protection, STP Root Guard, SuperLoop Protection (SLP), Syslog support, Uni-Directional Link Detection (UDLD), User Datagram Protocol (UDP), View-based Access Control Model (VACM), Virtual Chassis Stacking (VCStack), Voice VLAN |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 10 KB |
| MAC Address Table Size | 16K entries |
| Manageable | Yes |
| Max Units In A Stack | 4 |
| PoE Budget | 740 watt |
| Ports | 28 |
| Power Over Ethernet (PoE) | PoE+ |
| Product Type | Switch |
| Remote Management | CLI, DHCP, HTTP, HTTPS, ICMP, IPv6, NTP, RADIUS, RMON 1/2/3/9, RSTP, SCP, SFTP, SLP, SMTP, SNMP 1/2c/3/6, SSH, SSH 6, TACACS+, Telnet, TFTP |
| Routing Protocol | BGP, BGP-4, CIDR, ECMP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSTP, OSPF, OSPF for IPv6, OSPFv2, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, PBR, RIP, RIP-2, RIPng, RSTP, Static IPv6 routing, VRRP, VRRPv3 |
| Stackable | Stackable |
| Status Indicators | Status |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
| Connectivity |
| Interface Provided | 2 x network stack device, 24 x 10/100/1000 Base-T RJ-45 PoE+ (30 W), 4 x 1000Base-X/10GBase-X SFP+ uplink, Console, USB |
| Port Quantity | 24 |
| Port Type | 10/100/1000 (PoE+) |
| Ports Type (2nd) | 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Power |
| Frequency | 50/60 hertz |
| Power Supplies Installed | 2 |
| Required Voltage | AC 120/230 volt |
| Technical Information |
| Encryption | 128-bit AES, 192-bit AES, 224-bit SHA-2, 256-bit AES, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, AES, CCM, CMAC, CRL, DES, DRBG, DSA, ECDSA, FIPS 180-1, FIPS 186, FIPS 46-3, GCM, MD5, PEAP, PKI, RNG, RSA, SHA-1, SSL, SSL 2.0/3.0, TLS 1.2, Triple DES, TTLS, XTS |
| Humidity Range Storage | 5 – 95% (non-condensing) |
| Max Operating Temperature | 122°F |
| Max Storage Temperature | 158°F |
| Min Operating Temperature | 32°F |
| Min Storage Temperature | -13°F |
| Operating Humidity | 5 – 90% (non-condensing) |
| Product Information |
| Authentication Method | EAP, RADIUS, SSH, SSH2, TACACS+, X.509 certificates |
| Capacity | OpenFlow flows: up to 1250, Packet buffer: 3 MB, Priority queues: 8, VLANs: 4094 |
| Device Type | Internal power supply |
| Packaged Quantity | 1 |
| Performance | Forwarding rate: 95.2 Mpps, Latency (1 Gbps): 3.98 µs, Latency (10 Gbps): 1.63 µs, Latency (10 Mbps): 29.91 µs, Latency (100 Mbps): 6.06 µs, Stacking bandwidth: 40 Gbps, Switching capacity: 128 Gbps |
| Ports (2nd) Quantity | 4 |
| Included Items |
| Included Accessories | 19″ rack mounting kit |
| Dimensions & Weight |
| Height | 1.7 inch |
| Weight | 13.67 lbs |
| Width | 17.4 inch |
| Depth | 16.6 inch |
| Physical Characteristics |
| Color Category | Gray |
| Certifications & Listings |
| Compliant Standards | AS/NZS 60950-1, CAN/CSA C22.2 No. 60950-1-03, China RoHS, cUL, EN 55032 Class A, EN 60825-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55024, EU RoHS, FCC Class A certified, HMAC, ICES-003 Class A, UL, UL 60950-1, VCCI Class A |
