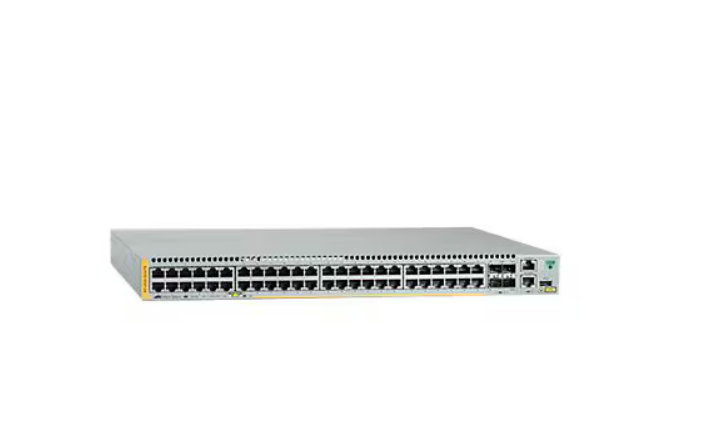

Allied Telesis AT x930-52GPX – switch – 48 ports – managed – rack-mountable


Quick tech specs

  • 52GPX
  • L3
  • 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
  • PoE+
  • Switch
  • managed
  • rack-mountable

40,999.00 د.إ

Know your gear

Allied Telesis x930 series switches are a high-performing and feature-rich choice for today’s networks. The x930 series has the flexibility and performance for key network connectivity.
SKU: AT-X930-52GPX-901 Category: Tag:
Category Specification
Overview
Brand Allied Telesis
Product Line Allied Telesis AT
Model x930-52GPX
Manufacturer Allied Telesis
Memory
Flash Memory Installed 256 MB
Memory Technology DDR SDRAM
RAM Installed 2 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features 4MB packet buffer, ACL support, Allied Telesis Management Framework (AMF), Black hole routing, BPDU, Built-In Self Test (BIST), TDR, Control Plane Prioritization (CPP), DHCP client/relay/snooping, DiffServ, DDMI, DNS relay, DoS prevention, DAI, ECMP, EPSRing, IPv4/IPv6 support, LD-VCStack, Loop prevention, NAC, NTP server, PVST+, Policy-based access control, Policy-based rate limiting, QoS, SCP, STP Root Guard, SLP, Syslog, VLAN support
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 13KB
MAC Address Table Size 64K entries
Manageable Yes
Ports 48
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, HTTP, HTTPS, RMON 1/2/3/9, SNMP 1/2c/3, SSH/SSH-2, Telnet, TFTP
Routing Protocol BGP, BGP-4, ECMP, IGMP/IGMPv2/IGMPv3, MLD/MLDv2, OSPF for IPv6, OSPFv2/v3, PIM-DM/PIM-SM, PBR, RIP-1/2/RIPng, Static IPv4/IPv6 routing, VRRPv3
Stackable Yes
Status Indicators Status
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
Expansion Slots 1 (total) / 1 (free) x expansion slot
Connectivity
Interface Provided 1 x console RJ-45, 1 x management Gigabit LAN RJ-45, 1 x USB, 4 x SFP+, 48 x 1000Base-T RJ-45
Port Quantity 48
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 10 Gigabit SFP+
Power
Frequency 50/60 hertz
Power Supplies Installed 2
Power Supplies Supported 2
Redundant Power Supply Yes
Redundant Power Supply Supported 1+1
Technical Information
Encryption MD5, PEAP, SSL 2.0/3.0, TLS 1.0, TTLS
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 122°F
Max Storage Temperature 158°F
Min Operating Temperature 32°F
Min Storage Temperature -4°F
Operating Humidity 5 – 90% (non-condensing)
Product Information
Authentication Method EAP, RADIUS, SSH/SSH2, TACACS+, X.509 certificates
Capacity Priority queues per port: 8, VRF entries: up to 64, VLANs supported: 4096
Device Type Internal power supply
Packaged Quantity 1
Performance Forwarding performance: 250 Mpps, Latency (10 Gbps): 2.6 µs, Latency (10 Mbps): 47.4 µs, Latency (100 Mbps): 7.9 µs, Latency (1000Base-T): 3.9 µs, Stacking bandwidth: 40 Gbps, Switching fabric bandwidth: 336 Gbps
Ports (2nd) Quantity 4
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 11.46 lbs
Width 17.3 inch
Depth 16.5 inch
Physical Characteristics
Color Category Silver
Certifications & Listings
Compliant Standards AS/NZS 60950-1, CAN/CSA C22.2 No. 60950-1-03, China RoHS, cUL, EN 60825-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Class A, ICES-003 Class A, RoHS, UL, UL 60950-1, VCCI Class A
ENERGY STAR Certified No
