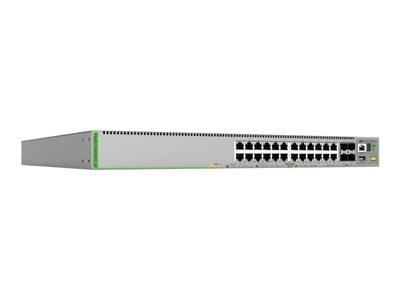

Allied Telesis CentreCOM AT-GS980MX/28PSm – switch – 28 ports – managed – rack-mountable
Allied Telesis CentreCOM AT-GS980MX/28PSm – Switch – L3 – managed – 20 x 10/100/1000 (PoE+) + 4 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ – rack-mountable – PoE+ (370 W)
د.إ11,499.00
Allied Telesis GS980MX Series are high-performing, feature-rich, and versatile for today’s networks. With Gigabit/Multi-Gigabit ports and 10 Gigabit uplinks, plus the power of Allied Telesis Virtual Chassis Stacking (VCStack), the GS980MX Series enable flexible deployment and a resilient solution.
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 20 x 10/100/1000 (PoE+) RJ-45<br>4 x 100/1000/2.5G/5G (PoE+) RJ-45<br>4 x 1/10Gbit LAN SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Switching fabric bandwidth: 160 Gbps<br>Forwarding rate: 119 Mpps<br>Latency (10 Gbps): 1.63 µs<br>Latency (100 Mbps): 8.29 µs<br>Latency (1 Gbps): 7.63 µs<br>Latency (2.5 Gbps): 7.41 µs<br>Latency (5 Gbps): 4.97 µs |
| Capacity | Buffer capacity (MB): 1.5<br>Configurable VLANs: 4094<br>Priority queues: 8 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Max Units In A Stack | 4 |
| Routing Protocol | RIP, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, CIDR |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SMTP |
| Encryption Algorithm | DES, Triple DES, RSA, MD5, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, DSA, ECDSA, AES-ECB, PKI, 128-bit AES, 192-bit AES, 256-bit AES, AES-CBC, SHA-2, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, TLS 1.2, AES-CFB, AES-OFB, RNG, 224-bit SHA-2, CCM, CMAC, GCM, XTS, DRBG |
| Authentication Method | RADIUS, X.509 certificates, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Flow control, ARP support, OCSP support, VLAN support, IGMP snooping, port mirroring, DiffServ support, MAC address filtering, SNTP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Remote Switch Port Analyzer (RSPAN), SNMP trap, DHCP client, Management Information Base (MIB), MAC address lockout, Dynamic VLAN Support (GVRP), Network Access Control (NAC), loop prevention, port isolation, Strict Priority (SP), 802.1x authentication, VoIP support, IP source guard, Ethernet Protection Switched Ring (EPSRing), Virtual Chassis Stacking (VCStack), Logical Link Control, Internet Control Message Protocol (ICMP), Control Plane Prioritization (CPP), Secure Copy (SCP), Allied Telesis Management Framework (AMF), Built-In Self Test (BIST), Digital Diagnostics Monitoring (DDM), MAC address authentication, Network Timing Protocol (NTP), Active Fiber Monitoring, Authentication, Authorization and Accounting (AAA), IGMP querier, VLAN mirroring, Voice VLAN, LLDP-MED, Private VLAN, storm protection, Guest VLAN, Weighted Round Robin (WRR), loopback detection, VLAN Tagging, BPDU Guard |
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX |
| RAM | 1 GB DDR3 SDRAM |
| Flash Memory | 256 MB |
| Status Indicators | PoE, link/activity, SFP+ |
| Expansion / Connectivity | Interfaces: 20 x 10/100/1000 Base-T (PoE+) RJ-45<br>4 x 100/1000/2.5G/5G (PoE+) RJ-45<br>4 x 1/10Gbit LAN SFP+<br>1 x console RJ-45<br>1 x USB Type A |
| Power | Power Device: Internal power supply<br>Installed Qty: 1<br>Voltage Required: AC 100-240 V (50/60 Hz) |
| Miscellaneous | Included Accessories: 4 bumper feet, power cord retention clip<br>Cables Included: 1 x RJ-45 to DB-9 cable – 6.6 ft<br>Rack Mounting Kit: Included<br>Compliant Standards: FCC Class A certified, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, RoHS, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, EN 55022 Class A<br>Localization: United States |
| Software / System Requirements | Software Included: Alliedware Plus |
| Dimensions & Weight | Width: 17.4 in<br>Depth: 16.6 in<br>Height: 1.7 in<br>Weight: 12.35 lbs |
| Dimensions & Weight (Shipping) | Shipping Width: 22.2 in<br>Shipping Depth: 21 in<br>Shipping Height: 5 in<br>Shipping Weight: 16.75 lbs |
