Networking

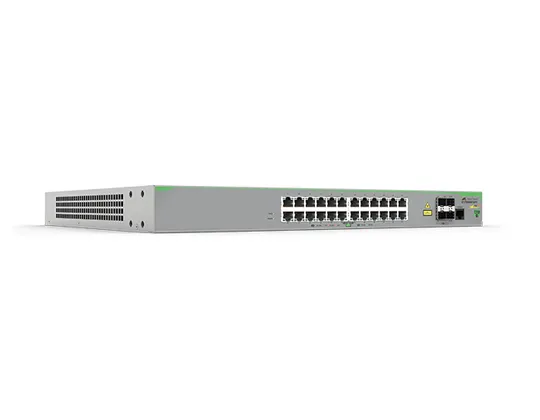

Allied Telesis FS980M/28PS Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grey
24 x 10/100TX PoE+ ports, 4 x 100/1000X SFP uplink/stacking ports, 440 x 345 x 43.2 mm, 5.1 kg
5,099.00 د.إ
Highlights
CentreCOM FS980M switches are cost-effective, fully managed, and can be stacked for increased resiliency and port density at the edge of the network. As part of an Autonomous Management Framework™(AMF) network, the FS980M switches utilise automated management and zero-touch recovery to lower running costs. Power over Ethernet delivers the full 30 watts of PoE+ to support video surveillance and wireless access applications.
| Feature | Details |
|---|---|
| SFP module slots quantity | 4 |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Port mirroring | Y |
| Full duplex | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| Active link detection | Y |
| VLAN support | Y |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Fiber ethernet cabling technology | 100BASE-X, 1000BASE-X |
| MAC address table | 16000 entries |
| Switching capacity | 12.8 Gbit/s |
| Forwarding rate | 9.52 Mpps |
| Number of queues | 8 |
| Static route | Y |
| Number of static routes | 16 |
| Jumbo frames support | Y |
| Jumbo frames | 10000 |
| DHCP features | DHCP client, DHCP snooping |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| Security algorithms | 3DES, AES, MD5, PEAP, SHA-1, SHA-2, SSH, SSL/TLS, TTLS |
| Static port security | Y |
| SSH/SSL support | Y |
| Loop protection | Y |
| BPDU filtering/protection | Y |
| Authentication | MAC-based authentication, Web-based authentication |
| Password protection | Y |
| Authentication type | AAA, IEEE 802.1x, Network Access Control (NAC) |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Traffic classification | Y |
| ARP inspection | Y |
| Configuring Location Settings (CLI) | Y |
| System event log | Y |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 24 |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Multicast support | Y |
| Management protocols | SNMP, IGMPv1,IGMPv2,IGMPv3 |
| Routing protocols | RIP-1, RIP-2 |
| Rack mounting | Y |
| Stackable | Y |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Y |
| Wall mountable | Y |
| Certification | FCC part15 B, EN55022 Class A, CISPR22:2006, VCCI Class A, C-Tick, EN 55024, UL 60950-1 Ed2, C22.2 NO.60950-1, EN 60950-1 Ed2, IEC60950-1 Ed.2, EN60950-1 Ed2, CE, cULus, TUV, RoHS |
| Memory type | DDR2-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Noise level | 49 dB |
| Firmware upgradeable | Y |
| Power supply included | Y |
| Number of power supply units | 1 |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 8 A |
| Power consumption (max) | 520 W |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 375 W |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 3048 m |
| Heat dissipation | 1800 BTU/h |
| Width | 440 mm |
| Depth | 345 mm |
| Height | 43.2 mm |
| Weight | 5.1 kg |
| Package weight | 7.6 kg |
