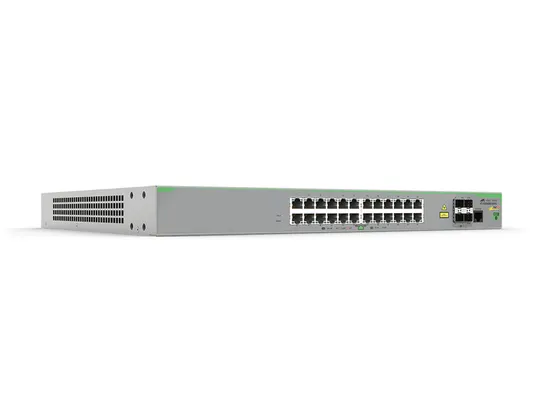

Allied Telesis FS980M/28PS Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

Add to Wishlist

24 x 10/100TX PoE+ & 4 x 100/1000X SFP, 100-240 VAC, 1.5 A, 50/60 Hz, UK

7,399.00 د.إ

Add to Wishlist

Highlights

Fast Ethernet Managed Access Switch The FS980M/28PS features 24 x 10/100TX PoE+ ports and 4 x 100/1000X SFP uplink/stacking ports. CentreCOM FS980M switches are cost-effective, fully managed, and can be stacked for increased resiliency and port density at the edge of the network. As part of an Autonomous Management Framework™(AMF) network, the FS980M switches utilise automated management and zero-touch recovery to lower running costs. Power over Ethernet delivers the full 30 watts of PoE+ to support video surveillance and wireless access applications.

SKU: AT-FS980M/28PS-30 Category: Tag:
Feature Specification
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Y
Web-based management Y
MIB support Y
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity 24
Gigabit Ethernet (copper) ports quantity 4
SFP module slots quantity 4
Fiber optic connector SFP
Console port RJ-45
Networking standards IEEE 802.1Q, IEEE 802.1v, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3x, IEEE 802.3z
10G support N
Copper ethernet cabling technology 10BASE-T, 100BASE-T
Port mirroring Y
Full duplex Y
IP routing Y
Flow control support Y
Link aggregation Y
Spanning tree protocol Y
VLAN support Y
Fiber ethernet cabling technology 100BASE-X, 1000BASE-X
MAC address table 16000 entries
Switching capacity 12.8 Gbit/s
Throughput 9.52 Mpps
Number of queues 8
Jumbo frames support Y
Jumbo frames 10000
DHCP features DHCP client
Access Control List (ACL) Y
IGMP snooping Y
Security algorithms SNMP, SSH, SSL/TLS
Loop protection Y
BPDU filtering/protection Y
Authentication MAC-based authentication, Port-based authentication
Multicast support Y
Rack mounting Y
Stackable Y
Product colour Grey
LED indicators Y
Safety UL 60950-1 Ed2, C22.2 NO.60950-1, EN 60950-1 Ed2, IEC60950-1 Ed.2, EN60950-1 Ed2
Certification FCC part15 B, EN55022 Class A, CISPR22:2006, VCCI Class A, C-Tick, EN 55024, CE, cULus, TUV
Memory type DDR2-SDRAM
Internal memory 512 MB
Flash memory 128 MB
Noise level 36 dB
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Input current 8 A
Power consumption (max) 49 W
Power plug type Type G
Power over Ethernet (PoE) Y
Power over Ethernet plus (PoE+) ports quantity 12
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 375 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 5 – 90%
Storage relative humidity (H-H) 5 – 95%
Operating altitude 0 – 3048 m
Heat dissipation 170 BTU/h
Width 440 mm
Depth 345 mm
Height 43.2 mm
Weight 5.1 kg
Cables included AC
Package weight 7.6 kg
