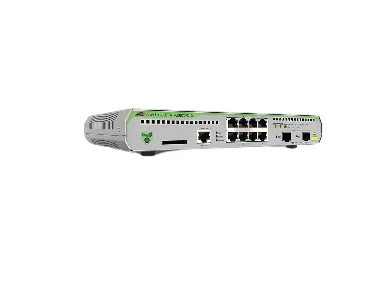

Allied Telesis GS970M/10 Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
Managed Gigabit Ethernet Switch, 8x 10/100/1000T ports, 2x 100/1000X SFP ports, UK power cord
AED2,199.00
Highlights
The Allied Telesis CentreCOM® GS970M/10 Layer 3 managed switch features eight 10/100/1000T Gigabit Ethernet ports and two 100/1000X SFP ports for secure connectivity at the network edge.
| Feature | Specification |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Traffic classification | Y |
| ARP inspection | Y |
| System event log | Y |
| MIB support | SNMP MIB |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Combo SFP ports quantity | 2 |
| Fiber optic connector | SFP |
| Console port | RS-232 |
| Compatible memory cards | SD, SDHC |
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Port mirroring | Y |
| Full duplex | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Spanning tree protocol | Y |
| VLAN support | Y |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4094 |
| Fiber ethernet cabling technology | 100BASE-X, 1000BASE-X |
| MAC address table | 16000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.9 Mpps |
| Latency (10-100 Mbps) | 7.8 µs |
| Latency (1 Gbps) | 3.4 µs |
| Static route | Y |
| Jumbo frames support | Y |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| DHCP features | DHCP client, DHCP snooping |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| Security algorithms | 3DES, AES, MD5, PEAP, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS, TTLS |
| MAC address filtering | Y |
| SSH/SSL support | Y |
| Loop protection | Y |
| BPDU filtering/protection | Y |
| Authentication | MAC-based authentication, Port-based authentication |
| Password protection | Y |
| Authentication type | AAA, IEEE 802.1x, Network Access Control (NAC), RADIUS |
| Routing protocols | RIP, RIP-2 |
| Rack mounting | Y |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Y |
| Wall mountable | Y |
| Certification | FCC Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, CISPR Class A |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 2.4 A |
| Power consumption (max) | 16 W |
| Power over Ethernet (PoE) | N |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 4000 m |
| Heat dissipation | 55 BTU/h |
| Width | 265 mm |
| Depth | 180 mm |
| Height | 42.5 mm |
| Weight | 1.5 kg |
| Package width | 430 mm |
| Package depth | 360 mm |
| Package height | 150 mm |
| Package weight | 2.85 kg |
