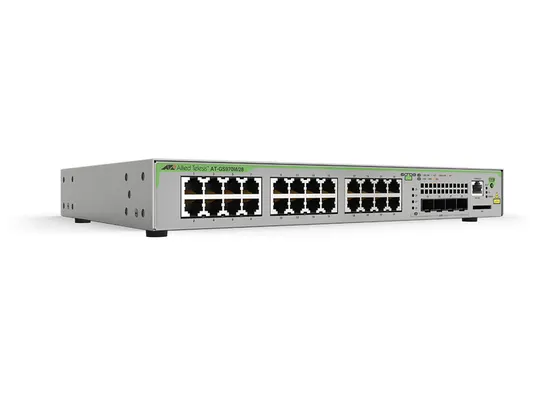

Allied Telesis GS970M Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey

Add to Wishlist
GS970M Managed L3 switch, Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE), 24x 10/100/1000T PoE, 4x 100/1000X SFP, 1U Gray

AED8,099.00

Add to Wishlist

Highlights

The GS970M Series of Layer 3 switches provide high performance with gigabit to the desktop, the ability to connect and power endpoints, and lower management costs—a high value network edge solution from Allied Telesis. – Reduce costs and automate network and device management with the Allied Telesis Autonomous Management Framework™ (AMF) – Flexible deployment with 10, 18 and 28 port models – High-speed gigabit network access for power users – Support converged networks with PoE+ to power devices like wireless access points, digital surveillance cameras and IP phones – Easy management with an industry-standard Command Line Interface (CLI) and intuitive Graphical – User Interface (GUI) – AlliedWare Plus™ Enterprise-class operating system – Eco-friendly for reduced running costs – Network Access Control (NAC) for edge security – Ethernet Protection Switched Ring (EPSRing™) enables resilient high-speed ring-based networks – Static Routing and RIP support Layer 3 environments

SKU: AT-GS970M/28PS-50 Category: Tag:
Feature Details
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Y
Web-based management Y
ARP inspection Y
System event log Y
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity 4
Console port RJ-45
Networking standards IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support N
Port mirroring Y
Flow control support Y
Link aggregation Y
Spanning tree protocol Y
VLAN support Y
Virtual LAN features Private VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN
Number of VLANs 4094
MAC address table 16000 entries
Switching capacity 56 Gbit/s
Throughput 41.7 Mpps
Latency (10-100 Mbps) 8.6 µs
Latency (1 Gbps) 4.3 µs
Jumbo frames support Y
Jumbo frames 10000
Packet buffer memory 1.5 MB
DHCP features DHCP server, DHCP client
Access Control List (ACL) Y
IGMP snooping Y
Security algorithms 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, SHA-1, SHA-2, SHA-256
MAC address filtering Y
SSH/SSL support Y
Loop protection Y
BPDU filtering/protection Y
Authentication MAC-based authentication, Web-based authentication
Multicast support Y
Rack mounting Y
Form factor 1U
Product colour Grey
LED indicators Y
Memory type DDR-SDRAM
Internal memory 512 MB
Flash memory 64 MB
Noise level 34 dB
Harmonized System (HS) code 85176990
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Power consumption (max) 26 W
Power over Ethernet (PoE) N
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 70 °C
Operating relative humidity (H-H) 5 – 90%
Storage relative humidity (H-H) 5 – 95%
Operating altitude 0 – 3000 m
Non-operating altitude 0 – 4000 m
Heat dissipation 89 BTU/h
Width 341 mm
Depth 231 mm
Height 44 mm
Weight 2.4 kg
Package width 430 mm
Package depth 360 mm
Package height 150 mm
Package weight 4 kg
