Power Supply

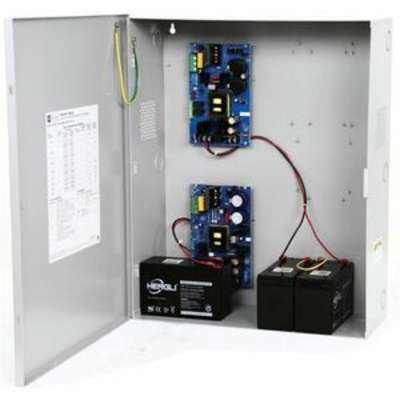

Altronix 12/24V, 6A & 12V, 10A Ulx Enclosure
- Filtered and electronically regulated outputs
- Thermal and short circuit protection with auto reset.
- Supervision AC Fail Low Battery and Battery Presence
- Built-in charger for sealed lead acid or gel type batteries
- Instantaneous transfer to stand-by batteries
- AC input and DC output LED indicators
- Enclosure accommodates up to four (4) 12VDC/12AH batteries
AED5,499.00
Altronix MaxFit Expandable Power Systems provide system designers and installers with optimum power choices and the highest levels of versatility. They provide 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/ chargers. Suit of features includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.
| Category | Specification |
|---|
| General Information |
| Product Name | 12/24V, 6A & 12V, 10A Ulx Enclosure |
| Manufacturer Part Number | MAXFIT35E |
| Product Line | MaxFit |
| Product Series | E |
| Product Type | Power Supply |
| Power Description |
| Number of +12V Rails | 2 |
| Output Voltage | 12 V DC, 24 V DC |
| Output Voltage Detail | 12 V DC @ 10 A, 12 V DC @ 6 A, 24 V DC @ 6 A |
| Output Current | 10 A, 6 A |
| Physical Characteristics |
| Form Factor | Enclosure |
| Height | 20.5″ |
| Width | 16.5″ |
| Depth | 6.3″ |
| Other Information |
| Product Family | MaxFit E |
