Power Supply
Altronix 12/24VDC 6A P/S with 2 PD8 220V
- Available with 1, 4, 8 or 16 outputs
- Fused or PTC protected output
- Supervision: – AC Fail – Battery Fail and Battery Presence
- Built-in charger for sealed lead acid or gel type batteries
- Instantaneous transfer to stand-by batteries
- Short circuit and overload protection
- AC input and DC output options
- CE European Conformity
AED3,399.00

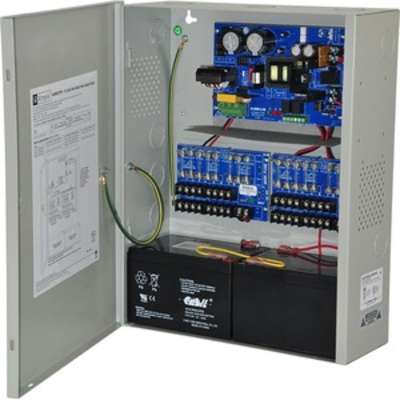

Altronix AL600X220 series power supply/chargers convert a 220VAC (working range 198VAC – 256VAC), 50/60Hz input into a single, four (4), eight (8) or sixteen (16) fuse/PTC protected outputs. Outputs are selectable for 12VDC or 24VDC with a total of 6A max.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | 12/24VDC 6A P/S with 2 PD8 220V |
| Product Series | AL600X220 |
| Product Model | AL600XPD16220 |
| Product Type | Power Supply |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 12 V DC, 24 V DC |
| Output Voltage Detail | 12 V DC @ 6 A 24 V DC @ 6 A |
| Output Current | 6 A |
| Physical Characteristics | |
| Form Factor | Enclosure |
| Height | 15.5″ |
| Width | 12.3″ |
| Depth | 4.5″ |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Other Information | |
| Product Family | AL600X220 |
| NDAA Compliant | Yes |
