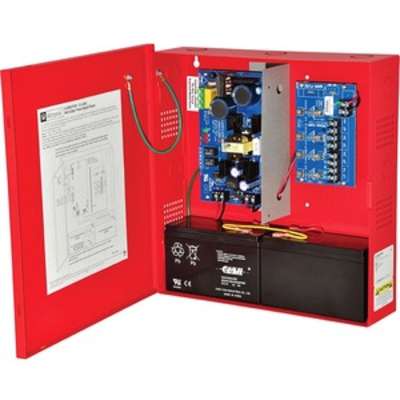

AL400ULPD4R is a multi-output power supply/charger that converts a 115VAC/60Hz input into four (4) Class 2 Rated 12VDC or 24VDC power-limited outputs.
| Category | Specification |
|---|
| General Information |
| Product Name | 12@4A/24@3A/4FUSE Out |
| Product Model | AL400ULPD4R |
| Product Type | Proprietary Power Supply |
| Technical Information |
| Protection Type | Fuse, Short Circuit, Thermal Overload |
| Power Description |
| Input Voltage | 110 V AC, 220 V AC |
| Input Voltage Type | AC |
| Input Voltage Range | 115 V AC – 250 V AC |
| Input Current | 3.5 A @ 220V, 3.5 A @ 110V |
| Output Voltage | 12 V DC, 24 V DC |
| Output Voltage Detail | 12 V DC @ 3 A, 24 V DC @ 4 A |
| Output Current | 3 A, 4 A |
| Physical Characteristics |
| Form Factor | Wall Mount |
| Height | 13.5″ |
| Width | 13″ |
| Depth | 3.3″ |
| Miscellaneous |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
