The NetWay16M Managed Midspans provide power and pass data for PoE compliant cameras/edge devices. Cameras/edge devices may be located up to 100m (328 ft.) from the NetWay unit. A NetWayXT repeater module can be utilized to extend the distance an additional 100m (328 ft.) for a total range of up to 200m (656 ft.). A maximum range of 600m (1968 ft.) is possible using multiple repeaters, based on camera/device port requirement. NetWay Managed Midspans are capable of supporting non-PoE compliant fixed and PTZ IP cameras utilizing NetWay1512 adapters.
Power Injectors

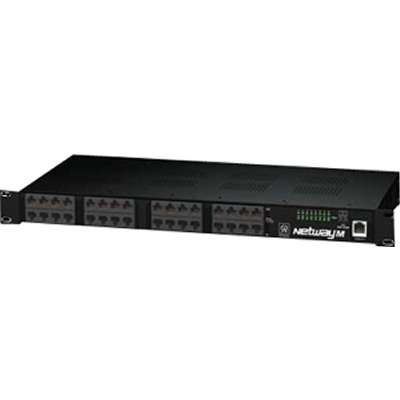

Altronix 16 Port Managed Midspan – Each Port Prov
- 16 Port Managed Midspan – each port provides PoE or PoE+.
- Total power 300W, PoE shutdown selectable by port.
- Ethernet port facilitates programming and status monitoring via laptop or LAN.
- Unused ports can be shutdown.
- 1U EIA 19″ Rack Chassis.
- UL and cUL listed, CE approved.
AED7,799.00
Category | Specification |
---|
General Information |
Product Name | 16 Port Managed Midspan – Each Port Prov |
Product Line | NetWay |
Product Model | NetWay16M |
Packaged Quantity | 1 |
Product Type | PoE Injector Hub |
Interfaces/Ports |
Output Ports | 16 x Ethernet |
Power Description |
Input Voltage | 110 V AC |
Maximum Output Voltage | 55 V DC |
Maximum Input Current | 3 A |
Maximum Output Power | 300 W |
Physical Characteristics |
Height | 1.6″ |
Width | 19.1″ |
Depth | 8.5″ |
Miscellaneous |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Country of Origin | United States |
Other Information |
Product Family | NetWay |
Maximum Frequency | 60 Hz |
NDAA Compliant | Yes |
