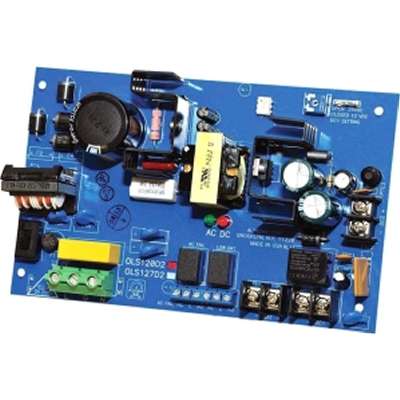

OLS120D2 power supply/charger converts a 115VAC, 50/60Hz or 230VAC, 50/60Hz input to a 12VDC and 24VDC outputs (see specifications). This unit has a wide range of applications for access control and security system accessories that require additional power.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | 1A 12V & 2A 24V 115/230VAC |
| Manufacturer Part Number | OLS120D2 |
| Product Type | Proprietary Power Supply |
| Technical Information | |
| Protection Type | Short Circuit, Thermal Overload |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Input Voltage Type | AC |
| Input Current | 950 mA @ 120V, 600 mA @ 230V |
| Output Voltage | 12 V DC, 24 V DC |
| Output Voltage Detail | 12 V DC @ 3 A, 12 V DC @ 1 A, 24 V DC @ 3 A |
| Output Current | 3 A, 1 A |
| Physical Characteristics | |
| Height | 1.8″ |
| Width | 4.5″ |
| Depth | 7.3″ |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Other Information | |
| Plug / Connector | On/Off Switch |
| NDAA Compliant | Yes |
| Status Indicators | AC input and DC output LED indicators |
