Power Supply

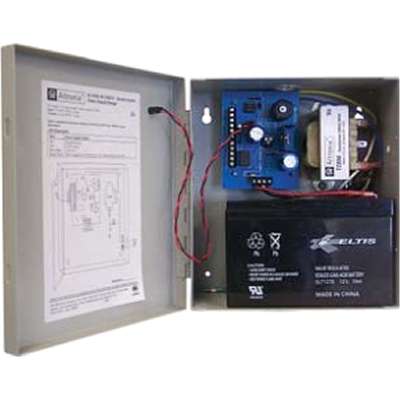

Altronix 2 Output Power Supply/Charger with Fire Ala (Battery sold separately)
AED1,399.00
AL125UL, AL125ULX, AL125ULP are Power Limited Power Supply/Chargers that will convert 115VAC 50/60Hz input, into two individually PTC protected 12VDC or 24VDC outputs (see specifications). They are intended for use in applications requiring UL Listing for Access Control (UL294) and applications requiring an interface with Fire Alarm Control Panels.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | 2 Output Power Supply/Charger with Fire Ala (Battery sold separately) |
| Product Model | AL125UL |
| Product Type | Proprietary Power Supply |
| Technical Information | |
| Protection Type | Short Circuit, Thermal Overload |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage Type | AC |
| Input Current | 600 mA @ 110V |
| Output Voltage | 12 V DC, 24 V DC |
| Output Voltage Detail | 12 V DC @ 1 A, 24 V DC @ 1 A |
| Output Current | 1 A |
| Physical Characteristics | |
| Form Factor | Wall Mount |
| Enclosure | Yes |
| Height | 8.5″ |
| Width | 7.5″ |
| Depth | 3.5″ |
| Miscellaneous | |
| Compatibility | Fire Alarm Control Panels |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Other Information | |
| NDAA Compliant | Yes |
