Power Supply

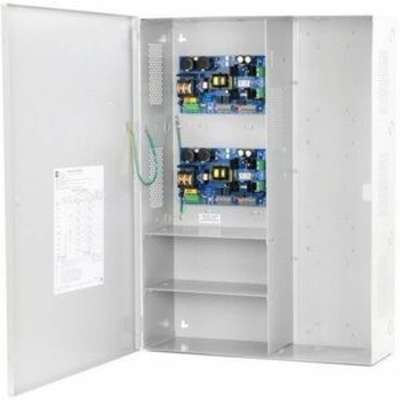

Altronix 2 Power Supply/Chargers – Each Are 12VDC @ 10AMP
- Filtered and electronically regulated outputs
- Thermal and short circuit protection with auto reset.
- Supervision AC Fail Low Battery and Battery Presence Low power shutdown
- Built-in charger for sealed lead acid or gel type batteries
- Instantaneous transfer to stand-by batteries
- AC input and DC output LED indicators
- Enclosure accommodates up to four (4) 12VDC/12AH batteries
- UL Listed in the U.S. and Canada
- CE European Conformity
AED7,099.00
Maximal Expandable Power Systems provide system designers and installers with optimum power choices and the highest levels of versatility. They provide 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. Includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | 2 Power Supply/Chargers – Each Are 12VDC @ 10AMP |
| Manufacturer Part Number | MAXIMAL55FE |
| Product Line | MAXIMAL |
| Product Series | FE |
| Product Type | Proprietary Power Supply |
| Technical Information | |
| Protection Type | Short Circuit, Thermal, Over Voltage |
| Features | LED indicator |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 120.2°F (49°C) |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Frequency | 60Hz |
| Number of +12V Rails | 2 |
| Output Voltage | 12 V DC |
| Output Voltage Detail | 12 V DC @ 10 A, 12 V DC @ 9.5 A |
| Output Current | 10 A |
| Physical Characteristics | |
| Form Factor | Enclosure |
| Height | 26″ |
| Width | 19″ |
| Depth | 6.3″ |
| Miscellaneous | |
| Country of Origin | United States |
| Product Family | MAXIMAL FE |
