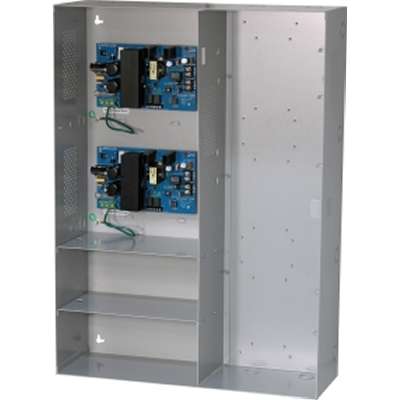

| This unit provides system designers and installers with “maximum” power choices and the highest levels of versatility. It provides 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control applications. |
Compatibility
|
| Category | Specification |
|---|---|
| General Information | |
| Product Name | 2 Power Supply/Chargers – Each Are Selectable |
| Manufacturer Part Number | MAXIMAL11E |
| Product Line | MAXIMAL |
| Product Model | 11E |
| Product Type | Proprietary Power Supply |
| Technical Information | |
| Protection Type | Short Circuit, Thermal Overload |
| Power Description | |
| Input Voltage | 110 V AC |
| Input Voltage Type | AC |
| Input Current | 4.5 A @ 110V |
| Number of +12V Rails | 1 |
| Output Voltage | 12 V DC, 24 V DC |
| Output Voltage Detail | 12 V DC @ 4 A 24 V DC @ 3 A |
| Output Current | 4 A, 3 A |
| Physical Characteristics | |
| Form Factor | Wall Mount |
| Height | 26″ |
| Width | 19″ |
| Depth | 6.3″ |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| NDAA Compliant | Yes |
| Product Family | MAXIMAL |
