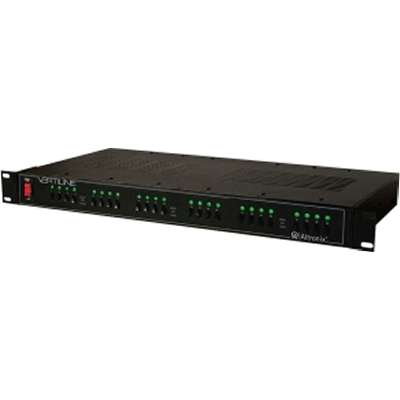

Altronix Vertiline CCTV Rack Mount Power Supplies provide 24 power outputs in a space saving 1U EIA 19″ rack mount chassis which may be rack, wall or shelf mounted. The units feature individually selectable 24VAC and/or 28VAC power outputs with surge suppression. Vertiline CCTV Rack Mount Power Supplies are also available in eight (8) and sixteen (16) output models with various power ratings.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | 24 Output Rack Mount CCTV Power Supply |
| Manufacturer Part Number | VERTILINE246CD |
| Product Line | VERTILINE |
| Product Model | 246CD |
| Product Type | Proprietary Power Supply |
| Technical Information | |
| Protection Type | PTC, Surge, Fuse |
| Power Description | |
| Input Voltage | 110 V AC |
| Output Voltage | 24 V AC, 28 V AC |
| Output Voltage Detail | 24 V AC @ 14 A 28 V AC @ 14 A |
| Output Current | 14 A |
| Input Current | 4 A @ 110V |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.6″ |
| Width | 19.1″ |
| Depth | 8.5″ |
| Miscellaneous | |
| Compatibility | CCTV Systems |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Other Information | |
| Product Family | VERTILINE |
| Plug / Connector | On/Off Switch |
| Input Voltage Type | AC |
| NDAA Compliant | Yes |
